Lindy 38167

£52.87
HDMI 4K Audio Extractor De-Embedder

In stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

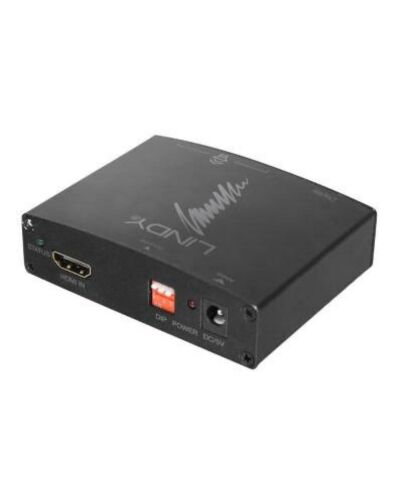

HDMI 4K Audio Extractor De-Embedder

PRODUCT DETAILS

• Extract stereo or multi-channel audio from a HDMI signal
• Support resolutions up 4096x2160@30Hz 4:4:4 8bit
• Supports various audio formats including LPCM Dolby Digital 2/5.1 and DTS-HD
• CEC Pass-through
• 2 year warranty

The Lindy HDMI 4K Audio Extractor is an effective solution for extracting audio from a HDMI source to both digital and analogue audio devices while sending the video signal to a 4K display or projector. This is a perfect solution for connecting Non-HDMI AV receivers or analogue 2-channel speaker setups to an HDMI source device while also ideal for extracting audio and video to a display that requires separate speakers such as a PC monitor.

The extractor supports high quality 4096x2160@30Hz resolutions with additional pass-through support for CEC to allow source devices to be controlled from a TV control and HDCP 1.4 this is ideal for use with source devices such as set top boxes games consoles and Blu-Ray Players.

This audio extractor allows output to both digital formats via Optical and HDMI and analogue via L/R connections ensuring seamless compatibility with an amplifier sound bar or 2-channel speaker setup. With support for multi-channel audio including DTS: HD and Dolby Digital 5.1 this device will ensure an impressive three-dimensional surround sound performance to compliment films games and music when connected to an audio device. The 3.5mm analogue connection ensures 2-channel speaker set ups can also be connected to the extractor.

Featuring a neat switch to fully control which source audio EDID is used and the ability to be powered via USB from the source or display device the extractor provides simple use and installation great for both AV installations in the home or in commercial settings. With a minimalist and stylish design it can also be hidden out of sight to compliment the popular trend of discreet AV installations.

Specifications

• Video Interface: HDMI
• Interface Standard: 1.4
• Supported Bandwidth: 10.2Gbps
• Maximum Resolution: 4096x2160@30Hz 4:4:4 8bit
• HDCP Support: HDCP 1.4
• Audio Interface: SPDIF Toslink (Optical) 3.5mm Stereo
• Chipset: EP91A2E
• Supported Audio:
• HDMI Pass-through
• Toslink (Optical): 2CH LPCM Dolby Digital 2/5.1 DTS-HD
• Coaxial: 2CH LPCM Dolby Digital 2/5.1 DTS-HD
• 3.5mm: 2CH LPCM
• Maximum Supported Audio Sample Rate: 192kHz
• Input Impedance: 100Ω
• Output Impedance: 100Ω
• Output Voltage: -
• Frequency Response: 0.1dB
• Signal to Noise Ratio: -
• Special Features: CEC Pass-through

Connectors

• Input HDMI: Type A (Female)
• Output HDMI: Type A (Female) 3.5mm Stereo Toslink (Optical) SPDIF (Coaxial)
• Power: 5.5/2.1mm DC Socket

Physical properties

• Dimensions (approx.) WxDxH: 65x88x24mm (2.56x3.46x0.94in)
• Housing Material: Metal
• Net Weight: 0.118kg (0.26lb)
• Operating Temperature: -15C - 55C (5F - 131F)
• Storage Temperature: -20C - 60C (-4F - 140F)
• Humidity: 10 - 90% RH (non-condensing)
• Power Requirements: 5W
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 202x144x55mm (7.95x5.67x2.17in)
• Gross Weight: 0.25kg (0.55lb)
• Warranty (Years): 2
• Certified: CE UKCA FCC RoHS and REACH

Package contents

HDMI 4K Audio Extractor / De-embedder
USB Type A to DC Cable 0.8m
LINDY Manual
