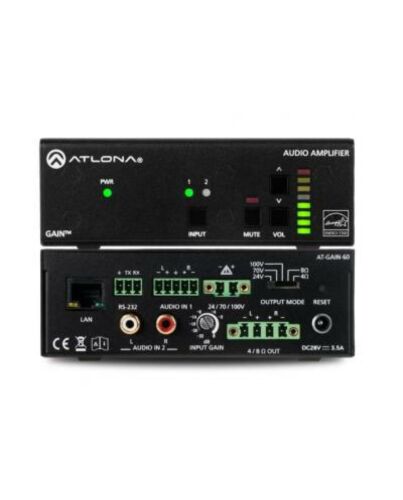

Atlona Technologies AT-GAIN-60

£421.45
GAIN-60: Stereo / Mono Power Amplifier – 60 Watts
Out of stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

The Atlona Gain™ 60 (AT-GAIN-60) is a compact power amplifier designed for low or high impedance applications. A mode selector switch allows the Gain 60 to deliver two channels of 30 watts each into 4 or 8 ohms or a single channel of 60 watts at 24 70 or 100 volts. This Class D amplifier is energy efficient and ENERGY STAR qualified and is also convection cooled without the need for fans. Additionally the Gain 60 is UL 2043 plenum rated allowing convenient yet discreet installation in a plenum airspace above a drop ceiling. Balanced and unbalanced inputs are provided for system design versatility. The Gain 60 is controllable via TCP/IP or RS-232 and can be integrated with Atlona AV switchers and OmniStream™ AV systems for a wide variety of sound reinforcement applications.

Features
• Selectable low or high impedance operation
• 2 x 30 watts @ 4 or 8 ohms
• 1 x 60 watts @ 24 70 or 100 volts
• Selectable balanced and unbalanced audio inputs
• Class D efficient amplifier design
• ENERGY STAR qualified
• Convection cooled – no need for fans
• UL 2043 plenum rated – allows installation above commercial drop ceilings
• Automatic standby configurable from 5 to 25 minutes of inactivity to minimize power consumption
• Rear panel input level control
• Integrated protection circuitry automatically activates in the event of clipping short circuit thermal overload and more
• Bass and treble tone controls
• TCP/IP and RS-232 control of volume level muting and tone controls
• Ideal for IP-based control from Atlona Velocity™ Control System
• Front panel button controls for input selection mute and volume control
• Front panel signal status LEDs for power input selection mute and real-time volume level
• Compact rack-mountable enclosure
• Optional AT-RACK-1RU rack shelf – recommended for rack installation
• Includes installation guide captive screw connectors and external universal power supply
• Award-winning 10 year limited product warranty

More Information

More Information
MPN AT-GAIN-60
brand Atlona Technologies
