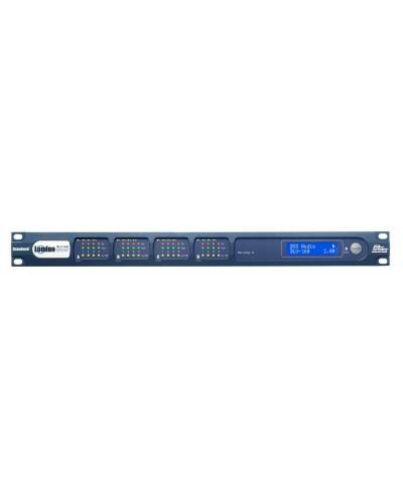

BSS BLU-160

£3,554.30
Signal Processor with Digital Audio Bus
Out of stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

Signal Processor with Digital Audio Bus

The Soundweb London BLU-160 offers configurable I/O configurable signal processing and a high bandwidth fault tolerant digital audio bus.

The BLU-160 has open architecture which is fully configurable through HiQnet™ London Architect. A rich palette of processing and logic objects and a “drag and drop” method of configuration provide a simple and familiar design environment.

This processor features a low latency fault tolerant digital audio bus of 256 channels which uses standard Category 5e cabling giving a distance of 100m between compatible devices. Fiber optic media converters can be used to increase the distance between devices to over 40km.

Four card slots facilitate many different device I/O configurations. Each slot can accommodate any of six available I/O cards including the Analog Input Card Analog Output Card Digital Input Card Digital Output Card AEC Input Card and Telephone Hybrid Card. Each card supports four channels.

Analog Input Cards provide software configurable gain in 6dB steps up to +48dB per channel and software selectable Phantom Power per channel. Digital Input Cards and Digital Output Cards process AES/EBU and/or S/PDIF audio and offer a variety of clocking and syncing options. (Further information about the I/O cards can be found on dedicated datasheets)

Phantom Power Sync Signal Present and Clip information per channel is easily accessible without the requirement for a PC from clear front panel LED indication. Device-specific information such as Device Name Device Type Firmware Version Number Time IP Address and Subnet Mask is available from the front panel display. A bi-directional locate function allows devices to be identified both from and within HiQnet London Architect.

12 Control Inputs and 6 Logic Outputs allow the BLU-160 to be integrated with GPIO compatible devices. The Soundweb London Interface Kit comprehensive documentation which details how Soundweb London systems can be integrated with third party control systems is included within the installation of HiQnet London Architect.

The BLU-160 and the other members of the Soundweb London family provide the building blocks of the perfectly tailored system solution.


Please call us for more detailed stock information on 0161 8681240 we may have some in our Sound Technology warehouse.

More Information

More Information
MPN BSS0085
brand BSS
