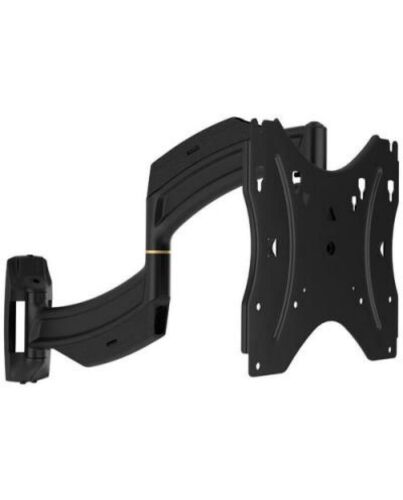

Chief CHIEFTS118SU

Small THINSTALL™ Dual Swing Arm Wall Mount - 18 Extension
A lightweight low-profile full-motion wall mount for TVs 10-32”.

Features
•Ultra Low Profile Sleek design collapses to 1.5 (38 mm) providing an ultra-low profile for all types of TVs including LED LCD and Plasma.
•Extends up to 18 (457 mm) Full extension maximizes viewing potential.
•Centris™ low-profile tilt Provides up to 12 of effortless fingertip tilt toachieve optimal viewing angles.
•Integrated Cable Management Enclosed tool-free cable covers make it easy to route power and signal cables and connect to the wall for a seamless installation.


Specifications
Certifications: UL Listed
Color: Black
Maximum Extension: 18.0 (457mm)
Maximum Screen Thickness: 5 (127mm)
Mounting Pattern Compatibility (Universal Versions): 75 x 75 100 x 100 200 x 100 200 x 200mm
Orientation: Landscape Portrait
Overall Dimensions (H x W x D): 11.6 x 13 x 1.5 (294 x 330 x 38mm)
Pivot (numerical value): 90 (depending on screen width)
Post-Installation Leveling (Roll): Yes
Shipping Weight: 8.00
Solution Type: Universal
Tilt: + 0 - 12
Typical Screen Sizes: 10 - 32
Wall Stud Compatibility (inches): Single Stud
Weight Capacity: 35 lbs (15.9kg)
