Chief CHIEFTS325TU

Medium THINSTALL Universal Dual Swing Arm Wall Mount with 25 extension 32 - 65 max weight 34kg - Black

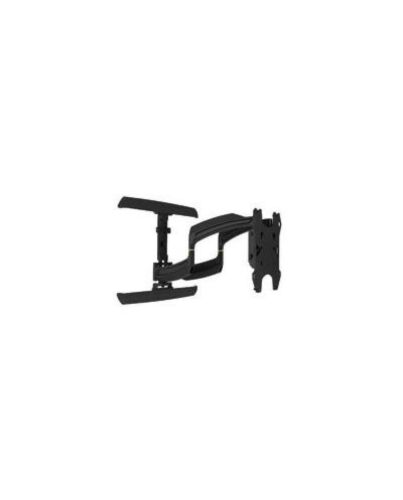

A lightweight low-profile full-motion wall mount for TVs 32-65”. Easily installs with one person by mounting the top rail and sliding on the assembly.

•Ultra Low Profile Sleek design collapses to 1.3” (33 mm) providing an ultra-low profile for all types of TVs including LED LCD and Plasma.
•Extends up to 25” (635 mm) Full extension maximizes viewing potential.
•Centris™ low-profile tilt Provides up to 15 of effortless fingertip tilt to achieve optimal viewing angles.
•Centerless™ Lateral Shift Post-installation lateral shift allows up to 16” (406 mm) of adjustment for limitless centering capability.
•Integrated Cable Management Enclosed tool-free cable covers and a wide open wall plate make it easy to route power and signal cables and connect to the wall for a seamless installation.

Lateral Shift: 16 (406.4mm)
Manual Height Adjustment: 1
Maximum Extension: 25.7 (652.8mm)
Minimum Depth: 1.3 (33.mm)
Mounting Pattern Compatibility (Universal Versions): 100 x 100mm - 600 x 400mm
Orientation: Landscape
Overall Dimensions (H x W x D): 17.2 x 29.5 x 1.3 (437 x 749 x 33mm)
Post-Installation Leveling (Roll): Yes
Solution Type: Universal
Tilt: + - 15
Typical Screen Sizes: 32 - 65
Wall Stud Compatibility (inches): 16
Weight Capacity: 75 lbs (34.kg)
