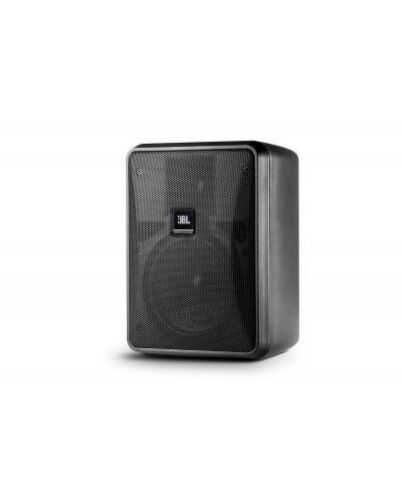

JBL PRO Control 25-1L - Pair 2-Way Speakers

Features

• Components:
• 5-” woofer with woven fiberglass cone
• 3/4” PEI diaphragm tweeter with fluid cooling
• Contemporary high-design appearance
• Built-in InvisiBall mounting hardware plus available U-bracket
• Weather resistant enclosure and transducers
• Wide 100 x 100 coverage
• 100 Watt power handling (200 Watt program)
• High fidelity sound character with broad frequency response of 60 Hz – 20 kHz.
• Sold in Pairs

Applications

The Control 25-1L is a two-way 5-” speaker with rich sonic character wide coverage consistent dispersion versatile mounting and a contemporary high-design look that fits into a wide range of decors. This makes Control 25-1L an excellent choice for a wide variety of applications including retail stores restaurants health clubs theme parks educational facilities hospitality music cafes leisure venues and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required.

The unique InvisiBall mounting hardware is included with each system making short work of permanent installation. The InvisiBall mounting method provides a high degree of both vertical and horizontal rotation and because InvisiBall adjustments are made through a hidden access behind the logo badge the grille never needs to be removed and there exists a high degree of theft deterrence as well. Integrated M6 mounting points for an optional U-bracket adds to the installation versatility.

The LF driver’s woven fiberglass cone provides durability and weather capable performance. The light weight high temperature fiberglass voice coil former and high temperature voice coil wire ensure high sensitivity and high power handling while also providing stable performance under long-term high-power working conditions. The pure butyl rubber surround delivers clean sound and robust operation. JBL’s WeatherEdge™ is a seamless rubberized extension of the woofer surround that provides added protection to critical transducer elements. Cone geometry is optimized for smooth frequency response and consistent off-axis performance while an FEA-optimized motor construction and linear suspension spider helps to lower harmonic distortion.

The HF driver’s low viscosity ferro-magnetic fluid increases voice coil cooling for higher long-term power handling. The softened PEI diaphragm delivers a smooth and pure high frequency sound quality. The light weight Kapton™ voice coil former increases durability while providing better high frequency response extension. All these factors also contribute toward making the driver especially rugged for outdoors and other stressful applications.

In addition to the driver designs contributing toward a high degree of weather resistance the cabinet provides excellent endurance against sun salt and moisture. Grilles are heavily zinc-plated and finished in a tough high-grade powder coating for rust resistance. The optional MTC-25WMG WeatherMax™ grilles are available for especially difficult environments and to break up driving rain. Connection is made via weather-capable screw-down terminals. The optional MTC-PC2 and MTC-PC3 panel covers are available to protect the terminal compartment providing a water-tight sealed gland-nut entrance (when used with round-jacketed cable within the specified diameter range).

The frequency response is extremely smooth resulting in a very natural sound character and the response extends down to 60 Hz providing strong bass capability. The system is capable of handling 100 Watts continuous pink noise (200 Watts program). The combination of high sensitivity and power handling provides high Max SPL of 110 dB.

The Control 25-1L readily accepts a variety of paints and finishes to match any dcor. Available in black or white (-WH).


Please call us for more detailed stock information on 0161 8681240 we may have some in our Sound Technology warehouse
