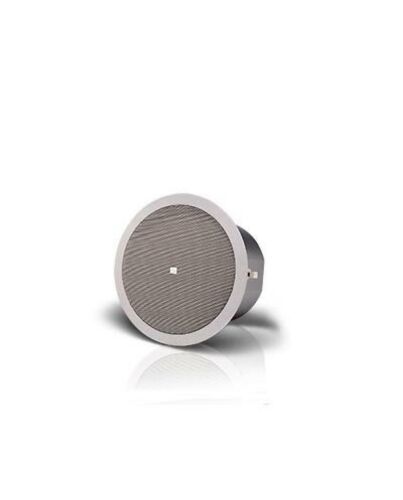

JBL PRO Control19CST Ceiling Speakers

Unique Nested Chamber™ design and Linear

• Component: Long excursion 200 mm (8 in) driver.

• Packaged with grille backcan and tile rails for fast

Simple installation and wire connection method.

• Frequency Range: 42 Hz - 200 Hz
• Power Capacity: 200 W Continuous
• Program Power
• Transformer Taps:70 V: 75 W 30 W 15 W & 7.5 W 100 V: 75 W 30 W & 15 W
• Nominal Coverage Angle:180 conical coverage
• Rated Maximum SPL:115 dB @ 1 m (3.3 ft) in ceiling near corner
• Nominal Impedance: 8 ohms
• Low Frequency:200 mm (8.0 in) Polypropelene cone. 38 mm (1.5 in) coil on aluminum former
• Enclosure Material :Backcan: Formed steel Baffle/Rim: Medium impact polystyrene fire rated UL94V-0
• Terminations: Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire size 12 AWG (2.5 mm2)
• Safety Agency Rating:In accordance with IEC60849 / EN60849. Suitable for use in air handling spaces per U.L.-2043 U.L.-1480 NFPA90 NFPA70A.
• Outside Dimensions: 345 x 345 mm (13.6 x 13.6 in) 318 mm (12.5 in) front of ceiling tile to back of backcan
• Cutout Size (H x W): 305 mm (12.0 in)

Please call us for more detailed stock information on 0161 8681240 we may have some in our Sound Technology warehouse.
