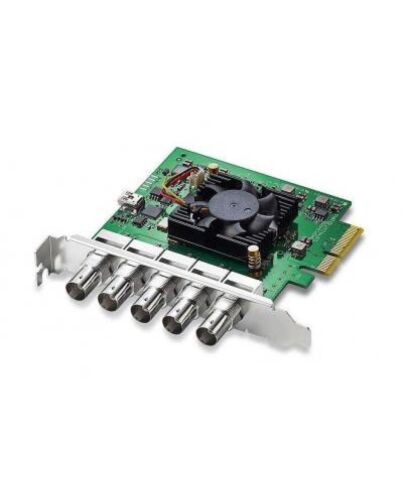

Blackmagic Design Decklink Duo 2

PCIe capture and playback card with 4 independent channels for SD and HD up to 1080p60

Featuring 4 independent 3G-SDI connections DeckLink Duo 2 is a PCIe capture and playback card that supports SDI formats in SD and HD up to 1080p60. You get the flexibility of 4 separate capture or playback cards in one. Plus it’s completely customizable so it’s perfect for media play-out systems multi screen digital signage servers real time multi channel capture systems and more.

• PCIe capture and playback card with 4 independent channels for SD and HD up to 1080p60
• SDI Video Input/Output: 4 x bidirectional 12-bit SD/HD independently configurable as either Input or Output
• SDI Audio Input/Output: 16 channels embedded in SD and HD
• Sync Input: Blackburst in SD 720p50 720p59.94 1080i50 and 1080i59.94 formats or Tri-Sync in any HD format
• Computer Interface: PCI Express 4 lane compatible with 4 and 8 lane PCIe slots

• Colorspace Conversion
Hardware based real time

• HD Down Conversion
Built in high quality software down converter from HD to SD on output. Down converted SD selectable between letterbox anamorphic 16:9 and center cut 4:3 styles

• HD Up Conversion
Built in high quality software up conversion from SD to 720HD or 1080HD on input. Selectable between 4:3 pillarbox 14:9 zoom and 16:9 zoom

• Cross Conversion
Built-in high quality hardware cross conversion from 720HD to 1080HD 1080HD to 720HD on playback

• Real Time Effects
Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects
