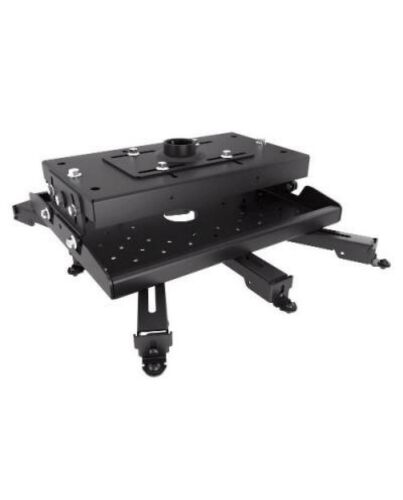

Chief Heavy Duty Universal Projector Mount

This mount provides the strong support you need for mounting heavy LCD/CRT projectors. Micro adjustments allow you to quickly achieve registration. The VCMU mount includes the universal HBU bracket that is compatible with most heavy duty projectors.

Features
•Independent roll pitch and yaw adjustments for quick and precise projector registration
•Multiple installation options: flush mount to ceiling use 0.5 threaded rods use a 1.5 NPT extension column
•Quick connect/disconnect for convenient lamp and filter access on most projectors
•Cable management through top of the mount without additional accessories
•Easy 3-Step Installation
1) Assemble legs to projector
2) Fasten legs to universal bracket
3) Hook bracket onto VCM mount
•Heavy Duty Steel Construction
•Weight Capacity: 250lbs
•Universal bracket also sold separately

Specifications
Color: Black
Overall Dimensions (H x W x D): 3.8 x 17.0 x 9.3 (97 x 432 x 235 mm)
Solution Type: Universal
Weight Capacity: 250 lbs (113.4 kg)
