ATEN KA7170-AX

Aten KA7170-AX

Product key Features
• Auto Signal Compensation (ASC) no DIP switch setting needed for the different distances.
• Keyboard and mouse emulation - keeps your server functioning smoothly when it is disconnected from the switch's KVM port or relocated to different KVM port.
• CPU module designed with automatic conversion to allow for flexible interface combinations (PS/2 USB) to control all computer OS types (Windows Mac Sun).
• Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking)*.
• Lifetime firmware upgrades.
• Built in ASIC for greater reliability and compatibility.
• CPU module designed with automatic conversion to allow for flexible interface combinations (PS/2 USB) to control all computer OS types (Windows Mac Sun).
• Hot Pluggable - add or remove computers without having to power down the switch.
• Compact size.

* This maximum resolution may vary depending on the transmission distance. For more details please refer to the product pages of the connected KVM switches.

Product Overview

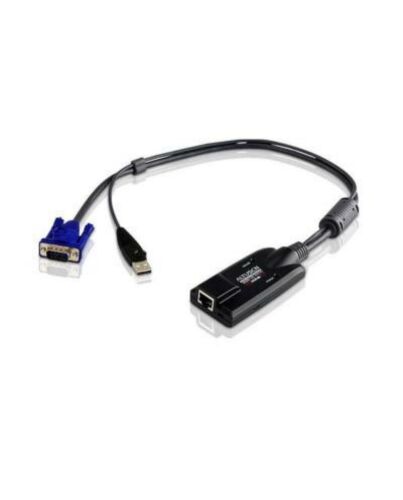

The KA7170 USB KVM Adapter Cable connects the KVM switch to the video and USB ports of the target computer. With its small form factor and light weight design it represents the next generation of USB KVM Adapter Cables - offering superior signal compensation and delay skew techniques for greatly enhanced video quality.

Product Package Contents
• 1x KVM Adapter Cable.
• 1x Rack Mount Kit.
• 1x Rack Mounting Guide.

Product Specification
Connectors
• Link: 1 x RJ-45 Female.
• Computer: 1 x USB Type A Male 1 x HDB-15 Male

LEDs
• Online: 1 (Green).
• Power: 1 (Orange).

Environmental
• Operating Temperature: 0-50C.

Physical Properties
• Housing:Plastic.
• Weight: 0.14 kg (0.31 lb).
• Dimensions (L x W x H):9.00 x 4.30 x 2.18 cm (3.54 x 1.69 x 0.86 in.).

Note
For some of rack mount products please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
