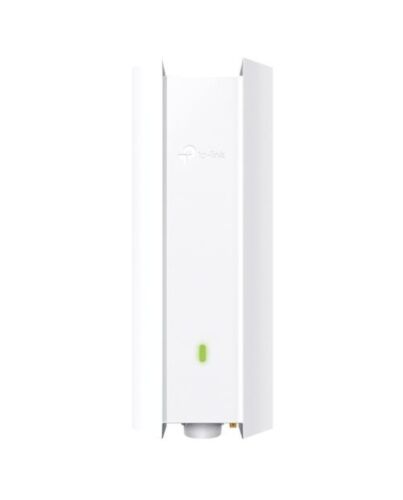

TP-LINK (EAP623-OUTDOOR HD) Omada AX1800 Indoor/Outdoor Wi-Fi 6 Access Point, Dual Band, OFDMA, MU-MIMO, 1024-QAM, PoE+, Mesh

Specification

• Primary Function: Access Point
• #Hide#Access Point Mode: Yes (Access Point Mode)
• #Hide#Wireless Standard: 802.11ax (Wi-Fi 6/6E)
• Bands: Dual Band
• Wi-Fi Rating: AX1800
• Max Single Band Wi-Fi Rate: 1201 Mbps
• Max Wired Transfer Rate: 10/100/1000 Mbps
• Interface(s): 1 x Gigabit Ethernet Port
• Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax
• Antenna(s): 2 x Internal Dual-Band Omni Antennas
  2.4 GHz: 4.0 dBi
  5 GHz: 5.0 dBi
• Button(s): Reset
• Power Supply: 802.3at PoE
  48V Passive PoE

  Note: PoE adapter is not included

• Dimensions: 106.5 x 57 x 281 mm
• Weatherproof: Yes (Weatherproof)
• Frequency: 5 GHz: Up to 1201 Mbps
  2.4 GHz: Up to 574 Mbps
• EIRP: "CE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP)"
• Wireless Functions: Mesh
  Seamless Roaming(802.11k/v/r)
  Automatic Channel Assignment
  Load Balance
  Band Steering
  Beamforming
  Airtime Fairness
  Multiple SSIDs:16 (8 for each band)
  Wireless Statistics
  Wireless Schedule
  Reboot Schedule
  RADIUS Accounting
  MAC Authentication
  Static IP/Dynamic IP
• Security: "VLAN
  Access Control
  Rogue AP Detection
  Captive Portal Authentication
  Maximum number of MAC Filter: 4,000
  Wireless Isolation between Clients
  WPA-Personal/Enterprise
  WPA2-Personal/Enterprise
  WPA3-Personal/Enterprise
  802.1X Support"
• Wireless Range: Long-range coverage
• Management: "Omada App
  Restore & Backup
  Firmware update via Web
  NTP
  Centralized Management (Requires Omada Controllers)
  Cloud Access
  Email Alerts
  Management MAC Access Control
  SNMP: v1, v2c
  SSH
  Web-based Management"
• Additional Features: See Overview
• Environment: Operating Temperature: -3070C (-22158F)
  Storage Temperature: -4070C (-40158F)
  Operating Humidity: 1090% RH non-condensing
  Storage Humidity: 590% RH non-condensing
• Package Contents: EAP623-Outdoor HD
  Installation Guide
  Mounting Kit
  Pole/Wall Mounting Kits
  Waterproof Kit

• Package Type: Retail
• Package Weight: 1.1600 kg
• Warranty: Limited Lifetime
