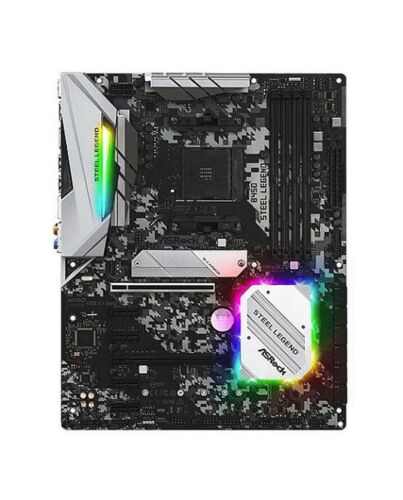

Asrock B450 STEEL LEGEND, AMD B450, AM4, ATX, 4 DDR4, HDMI, DP, XFire, Rock-Solid Durability, RGB Lighting, M.2

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: AMD AM4
• Chipset: AMD B450
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: 3533+(OC) / 3466+(OC) / 3200(OC) / 2933(OC) / 2667 / 2400 / 2133 MHz

  Refer to manufacturers link for CPU related variations
• Maximum Memory: 64GB
• Graphics: Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
• Graphics Ports: 1 x HDMI
  1 x DisplayPort 1.2
• Multi-GPU Support: Supports AMD Quad CrossFireX
• PCI/PCI Express: 2 PCIe 3.0 x16
  4 PCIe 2.0 x1
• Storage: 6 x SATA III
  1 x Ultra M.2 (2230/2242/2260/2280) - PCIe
  1 x M.2 (2230/2242/2260/2280/22110) - SATA
• RAID: "RAID 0, 1, 10 "
• Wireless: -
• LAN: GB LAN
• Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
• USB Ports Supported: "2 x USB 3.1 Gen2 (Type A & C at back)
  6 x USB 3.1 Gen1 (4 at back, 2 at mid-board)
  6 x USB 2.0 (2 at back, 4 at mid-board)"
• Back Panel I/O Ports: 1 x PS/2 Mouse/Keyboard
  1 x HDMI
  1 x DisplayPort 1.2
  1 x Optical SPDIF Out
  2 x USB 2.0
  1 x USB 3.1 Gen2 Type-A
  1 x USB 3.1 Gen2 Type-C
  4 x USB 3.1 Gen1
  1 x RJ-45 LAN
  HD Audio Jacks
• Internal I/O Connectors: 1 x COM Port
  1 x TPM
  1 x Power LED and Speaker
  1 x RGB LED
  1 x Addressable LED
  1 x AMD Fan LED
  1 x CPU Fan
  1 x CPU/Water Pump Fan
  3 x Chassis/Water Pump Fan
  1 x 24 pin ATX
  1 x 8 pin 12V
  1 x Front Audio
• .: 2 x USB 2.0
  1 x USB 3.1 Gen1
• Accessories: Quick Installation Guide
  Support CD
  I/O Shield
  2 x SATA Data Cables
  2 x Screws for M.2 Sockets
  1 x Standoff for M.2 Socket
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.8000 kg
• Warranty: 3 Year Replacement Warranty
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
• #Hide#RGB Lighting: Out of the box RGB lighting
