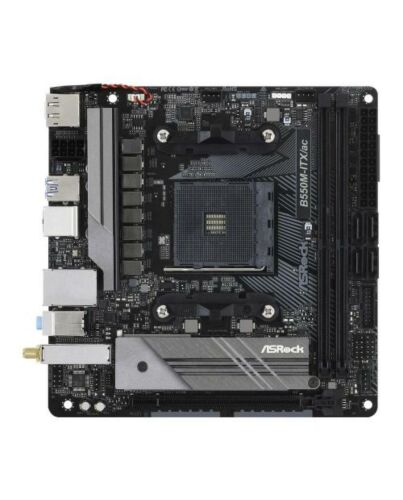

Asrock B550M-ITX/AC, AMD B550, AM4, Mini ITX, 2 DDR4, HDMI, DP, AC Wi-Fi, PCIe4, M.2

Specification

• Motherboard Type: Desktop
• Form Factor: Mini ITX
• Socket: AMD AM4
• Chipset: AMD B550
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support

  *Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 2 x DIMM
• RAM Speeds: 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
• Maximum Memory: 64GB
• Graphics: Integrated Graphics Processor*

  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPort 1.4
• Multi-GPU Support: -
• PCI/PCI Express: 1 x PCIe 4.0 x16
• Storage: 4 x SATA3 III
  1 x M.2 (2280) - SATA & PCIe
• RAID: "RAID 0, 1, 10"
• Wireless: Intel 802.11ac WiFi Module
  Supports IEEE 802.11a/b/g/n/ac
  Supports Dual-Band (2.4/5 GHz)
  Supports wireless connections up to 433Mbps
  Supports Bluetooth 4.2
• LAN: GB LAN
• Audio: 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
• USB Ports Supported: "2 x USB 3.2 Gen1 (Type-A & Type-C at back)
  2 x USB 3.2 Gen1 (at mid-board)
  4 x USB 2.0 (2 at back, 2 at mid-board)"
• Back Panel I/O Ports: 2 x Antenna
  1 x PS/2 Mouse/Keyboard
  1 x HDMI
  1 x DisplayPort 1.4
  2 x USB 2.0
  3 x USB 3.2 Gen1 Type-A
  1 x USB 3.2 Gen1 Type-C
  1 x RJ-45 LAN
  HD Audio Jacks
• Internal I/O Connectors: 1 x RGB LED
  1 x Addressable LED
  1 x CPU Fan
  2 x Chassis/Water Pump Fan
  1 x 24 pin ATX
  1 x 8 pin 12V
  1 x Front Audio
  1 x USB 2.0
  1 x USB 3.2 Gen1
• Accessories: "Quick Installation Guide, Support CD, I/O Shield
  2 x SATA Data Cables
  2 x ASRock WiFi 2.4/5 GHz Antennas"
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.8700 kg
• Warranty: 2 Year Replacement Warranty
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
