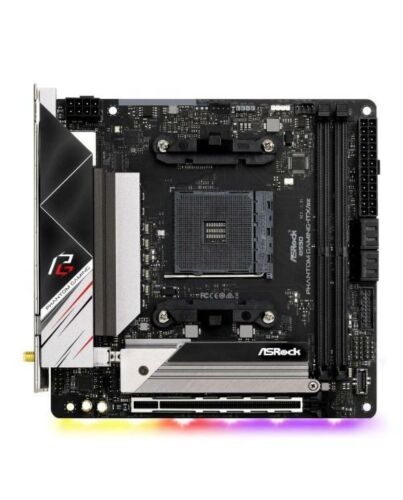

Asrock B550 PHANTOM GAMING-ITX/AX, AMD B550, AM4, Mini ITX, 2 DDR4, HDMI, DP, AX Wi-Fi, 2.5GB LAN, PCIe4, RGB Lighting, M.2

Specification

• Motherboard Type: Desktop
• Form Factor: Mini ITX
• Socket: AMD AM4
• Chipset: AMD B550
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support

  *Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 2 x DIMM
• RAM Speeds: 5400+(OC) / 5300(OC) / 5200(OC) / 5100(OC) / 5000(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
• Maximum Memory: 64GB
• Graphics: Integrated Graphics Processor*

  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPort 1.4
• Multi-GPU Support: -
• PCI/PCI Express: 1 x PCIe 4.0 x16
• Storage: 4 x SATA3 III
  1 x M.2 (2280) - PCIe
  1 x M.2 (2280) - SATA & PCIe
• RAID: "RAID 0, 1, 10"
• Wireless: Intel 802.11ax WiFi Module
  Supports IEEE 802.11a/b/g/n/ax
  Supports Dual-Band (2.4/5 GHz)
  Supports WiFi6 802.11ax (2.4Gbps)
  2 antennas - support 2 (Transmit) x 2 (Receive)
  Supports Bluetooth 5.1
  Supports MU-MIMO
• LAN: 2.5GB LAN
• Audio: 7.1 CH HD Audio with Content Protection
• USB Ports Supported: "2 x USB 3.2 Gen2 (Type-A & Type-C at back)
  6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
  2 x USB 2.0 (at mid-board)
  1 x Front Panel Type-C USB 3.2 Gen2 Header
  "
• Back Panel I/O Ports: 2 x Antenna
  1 x HDMI
  1 x DisplayPort 1.4
  1 x USB 3.2 Gen2 Type-A
  1 x USB 3.2 Gen2 Type-C
  4 x USB 3.2 Gen1
  1 x RJ-45 LAN
  HD Audio Jacks
• Internal I/O Connectors: 1 x RGB LED
  1 x Addressable LED
  1 x CPU Fan
  1 x CPU/Water Pump Fan
  1 x Chassis/Water Pump Fan
  1 x 24 pin ATX
  1 x 8 pin 12V
  1 x Front Audio
  1 x USB 2.0
  1 x USB 3.2 Gen1
  1 x Front Panel Type C USB 3.2 Gen2 Header
• Accessories: "Quick Installation Guide, Support CD
  2 x SATA Data Cables
  1 x ASRock WiFi 2.4/5 GHz Antenna
  1 x Screw for M.2 Socket"
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.1700 kg
• Warranty: 2 Year Replacement Warranty
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
• #Hide#RGB Lighting: Out of the box RGB lighting
