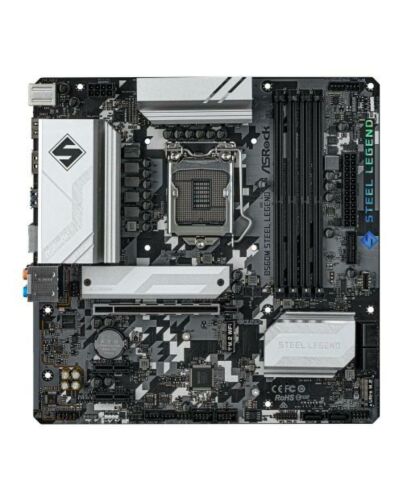

Asrock B560M STEEL LEGEND, Intel B560, 1200, Micro ATX, 4 DDR4, HDMI, DP, 2.5G LAN, RGB, 2x M.2

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: Intel 1200 - Rocket Lake
• Chipset: Intel B560
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 4800+(OC)
• Maximum Memory: 128GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPort 1.4
• Multi-GPU Support: -
• PCI/PCI Express: 1 x PCIe 4.0 x16
  2 x PCIe 3.0 x1
• Storage: 6 x SATA III
  1 x M.2 (2242/2260/2280) - PCIe
  1 x M.2 (2280) - SATA & PCIe
• RAID: -
• Wireless: -
• LAN: 2.5GB LAN
• Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• USB Ports Supported: "6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
  6 x USB 2.0 (2 at back, 4 at mid-board)
  1 x Front Panel Type C USB 3.2 Gen2x2 Header "
• Back Panel I/O Ports: 3 x Antenna Mounting Points
  1 x PS/2 Mouse/Keyboard
  1 x HDMI
  1 x DisplayPort 1.4
  1 x Optical SPDIF Out
  4 x USB 3.2 Gen1
  2 x USB 2.0
  1 x RJ-45 LAN
  HD Audio Jacks
• Internal I/O Connectors: 1 x SPI TPM
  1 x Chassis Intrusion and Speaker
  2 x RGB LED
  2 x Addressable LED
  1 x CPU Fan
  1 x CPU/Water Pump Fan
  3 x Chassis/Water Pump Fan
  1 x 24 pin ATX
  1 x 8 pin 12V
  1 x Front Audio
  2 x USB 2.0
  1 x USB 3.2 Gen1
• .: 1 x Front Panel Type C USB 3.2 Gen2x2 Header
• Accessories: 2 x SATA Data Cables
  3 x Screws for M.2 Sockets
  1 x Standoff for M.2 Socket
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.5000 kg
• Warranty: 3 Year Replacement Warranty
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#RGB Lighting: Out of the box RGB lighting
