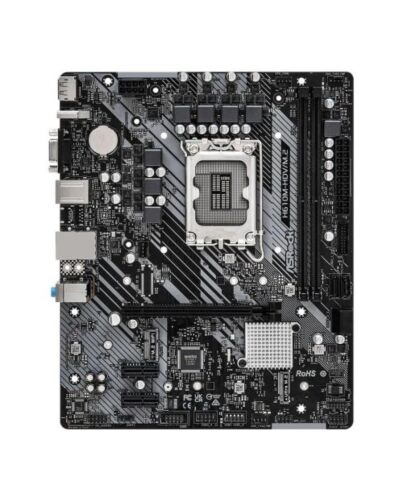

Asrock H610M-HDV/M.2, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, PCIe4, 1x M.2

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: Intel 1700
• Chipset: Intel H610
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 2 x DIMM
• RAM Speeds: Up to 3200 MHz
• Maximum Memory: 64GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x VGA
  1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 1 x PCIe 4.0 x16
  2 x PCIe 3.0 3x1
• Storage: 4 x SATA III
  1 x M.2 (2260/2280) - SATA & PCIe
• Wireless: -
• LAN: GB LAN
• Audio: 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec)
• USB Ports Supported: "4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board)
  5 x USB 2.0 (2 at back, 3 at mid-board)"
• Back Panel I/O Ports: 2 x Antenna Mounting Points
  1 x PS/2 Mouse/Keyboard
  1 x D-Sub
  1 x HDMI
  1 x DisplayPort 1.4
  2 x USB 3.2 Gen1
  2 x USB 2.0
  1 x RJ-45 LAN Port
  HD Audio Jacks
• Internal I/O Connectors: 1 x COM Port
  1 x SPI TPM
  1 x Chassis Intrusion and Speaker
  1 x CPU Fan
  1 x CPU/Water Pump Fan
  2 x Chassis/Water Pump Fan
  1 x 24 pin ATX
  1 x 8 pin 12V
  1 x Front Panel Audio
  2 x USB 2.0
  1 x USB 3.2 Gen1
• Accessories: "Quick Installation Guide, Support CD, I/O Shield
  2 x SATA Data Cables
  2 x Screws for M.2 Sockets"
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.9000 kg
• Warranty: 2 Year Replacement Warranty
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
