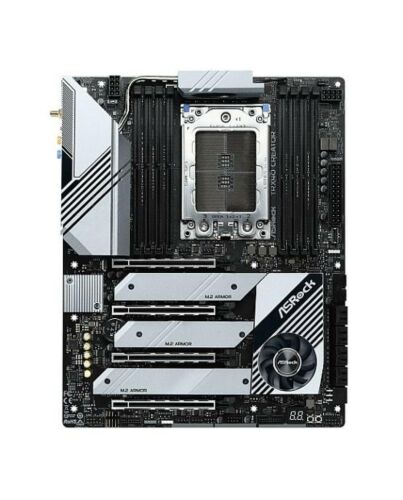

Asrock TRX40 CREATOR, AMD TRX40, sTRX40, ATX, XFire/SLI, AX Wi-Fi, 10GB & 2.5GB LAN, M.2

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: AMD sTRX4
• Chipset: AMD TRX40
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Quad Channel)
• RAM Slots: 8 x DIMM
• RAM Speeds: 4666(OC)+ / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
• Maximum Memory: 256GB
• Graphics: -
• Graphics Ports: -
• Multi-GPU Support: Supports AMD 4-Way CrossFireX
  Supports NVIDIA 4-Way SLI
  Supports NVIDIA NVLink
• PCI/PCI Express: 4 x PCIe 4.0 x16
• Storage: 8 x SATA III
  2 x Hyper M.2 (2260/2280) - PCIe
  1 x Hyper M.2 (2230/2242/2260/2280/22110) - SATA & PCIe
• RAID: "RAID 0, 1, 10"
• Wireless: Intel 802.11ax WiFi Module
  Supports IEEE 802.11a/b/g/n/ax
  Supports Dual-Band (2.4/5 GHz)
  Supports WiFi6 802.11ax (2.4Gbps)
  2 antennas
  Supports Bluetooth 5.0
  Supports MU-MIMO
• LAN: 10GB LAN & 2.5GB LAN
• Audio: 7.1 CH HD Audio (Realtek ALC4050H+ALC1220)
• USB Ports Supported: "1 x USB 3.2 Gen 2x2 Type-C (at back)
  2 x USB 3.2 Gen 2 Type-A (at back)
  8 x USB 3.2 Gen 1 (4 at back, at mid-board)
  2 x USB 2.0 (at mid-board)
  1 x Front Panel Type C USB 3.2 Gen2 Header"
• Back Panel I/O Ports: 2 x Antenna
  1 x PS/2 Mouse/Keyboard
  1 x Optical SPDIF Out
  2 x USB 3.2 Gen2 Type-A
  1 x USB 3.2 Gen2x2 Type-C
  4 x USB 3.2 Gen1
  2 x RJ-45 LAN
  1 x Clear CMOS Button
  1 x BIOS Flashback Button
  HD Audio Jacks
• Internal I/O Connectors: 1 x TPM
  1 x Power LED and Speaker
  2 x RGB LED
  2 x Addressable LED
  1 x CPU Fan
  1 x CPU/Water Pump Fan
  3 x Chassis/Water Pump Fan
  1 x 24 pin ATX
  2 x 8 pin 12V
  1 x 6 pin 12V
  1 x Front Audio
  1 x Right Angle Front Audio
• .: 1 x USB 2.0
  2 x USB 3.2 Gen1
  1 x Front Panel Type C USB 3.2 Gen2
  1 x Dr. Debug with LED
  1 x Power Button
  1 x Reset Button
  1 x CPU Xtreme OC Switch
• Accessories: 4 x SATA Data Cables
  1 x ASRock SLI_HB_Bridge_3S Card
  1 x ASRock WiFi 2.4/5 GHz Antenna
  3 x Screws for M.2 Sockets
  3 x Standoffs for M.2 Sockets
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 2.5000 kg
• Warranty: 3 Year Replacement Warranty
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: 10GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
