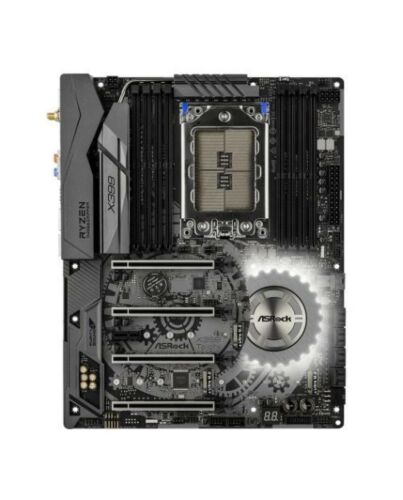

Asrock X399 TAICHI, AMD X399, TR4, ATX, 8 DDR4, XFire/SLI, Wi-Fi, Dual GB LAN, RGB Lighting, M.2

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: AMD TR4
• Chipset: AMD X399
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Quad Channel)
• RAM Slots: 8 x DIMM
• RAM Speeds: 3600+(OC)/3200(OC)/2933(OC)/2667/2400/2133 MHz
• Maximum Memory: 128GB
• Graphics: -
• Graphics Ports: -
• Multi-GPU Support: Supports AMD Quad CrossFireX
  Supports NVIDIA Quad SLI
• PCI/PCI Express: 4 x PCIe 3.0 x16
  1 x PCIe 2.0 x1
• PCI: -
• Storage: 8 x SATA III
  1 x M.2 Socket (2230/2242/2260/2280) - - SATA & PCIe
  2 x M.2 Socket - (2242/2260/2280) - SATA & PCIe
  1 x U.2 Connector
• RAID: "RAID 0, 1, 10 "
• Wireless: Intel 802.11ac WiFi Module
  Supports IEEE 802.11a/b/g/n/ac
  Supports Dual-Band (2.4/5 GHz)
  Supports wireless connections up to 433Mbps
  Supports Bluetooth 4.2 + High speed class II
• LAN: Dual GB LAN
• Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
• USB Ports Supported: "2 x USB 3.1 Gen 2 ports (Type-A & C port at back)
  12 x USB 3.1 Gen1 ports (8 at back, 4 at mid-board)
  4 x USB 2.0 ports (at mid-board)"
• Back Panel I/O Ports: 2 x Antenna Ports
  1 x PS/2 Mouse/Keyboard
  1 x Optical SPDIF Out
  1 x USB 3.1 Gen2 Type-A
  1 x USB 3.1 Gen2 Type-C
  8 x USB 3.1 Gen1
  2 x RJ-45 LAN
  1 x BIOS Flashback Switch
  HD Audio Jacks
• Internal I/O Connectors: 1 x Power LED and Speaker
  2 x RGB LED
  1 x CPU Fan
  2 x Chassis Fan
  1 x 24 pin ATX
  1 x 8 pin 12V
  1 x 4 pin 12V
  1 x 6 pin 12V
  1 x Front Audio
  1 x Right Angle Front Audio
  2 x USB 2.0 Headers
  2 x USB 3.1 Gen1 Headers
• .: 1 x Clear CMOS Switch
  1 x Dr. Debug
  1 x Power Switch
  1 x Reset Switch
  1 x CPU Xtreme OC Switch
  1 x Chassis Optional/Water Pump Fan
  1 x CPU Optional/Water Pump Fan
• Accessories: 4 x SATA Cables
  1 x 3-Way SLI Bridge Card
  1 x 4-Way SLI-S111 Bridge Card
  1 x SLI_HB_Bridge_3S Card
  2 x WiFi 2.4/5 GHz Antennas
  3 x Screws for M.2 Sockets
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 2.9740 kg
• Warranty: 3 Year Replacement Warranty
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#RGB Lighting: Yes (RGB)
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
