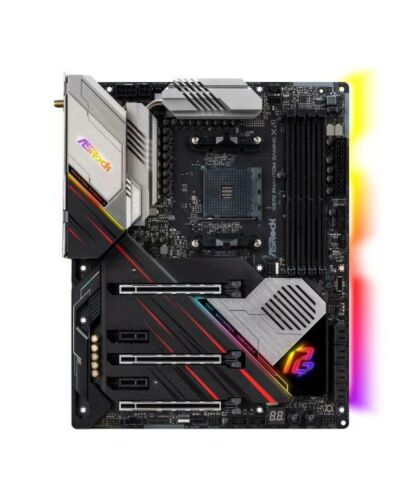

Asrock X570 PHANTOM GAMING X, AMD X570, AM4, ATX, 4 DDR4, HDMI, SLI/XFire, Wi-Fi, 2.5GB LAN, PCIe4, RGB Lighting, M.2

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: AMD AM4
• Chipset: AMD X570
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: AMD Ryzen series CPUs (Matisse)
  4666+/4400/4300/4266/4200/4133/3466/3200/2933/2667/2400/2133 MHz


  AMD Ryzen series CPUs (Pinnacle Ridge)
  3600+(OC)/3466(OC)/3200(OC)/2933/2667/2400/2133 MHz

  AMD Ryzen series CPUs (Picasso)
  3466+(OC)/3200(OC)/2933/2667/2400/2133 MHz
• Maximum Memory: 64GB
• Graphics: Integrated AMD RadeonTM Vega Series Graphics in Ryzen Series APU
• Graphics Ports: 1 x HDMI
• Multi-GPU Support: Supports AMD Quad CrossFireX
  Supports NVIDIA Quad SLI
  Supports NVIDIA NVLink
• PCI/PCI Express: AMD Ryzen series CPUs (Matisse)
  1 x PCI Express 4.0 x16

  AMD Ryzen series CPUs (Pinnacle Ridge)
  3 x PCI Express x16

  AMD Ryzen series CPUs (Picasso)
  1 x PCI Express 3.0 x16
  1 x PCI Express 4.0 x16
• Storage: 8 x SATA III
  1 x Hyper M.2 (2242/2260/2280) - SATA & PCIe
  1 x Hyper M.2 (2260/2280) - PCIe
  1 x Hyper M.2 (2230/2242/2260/2280/22110) - SATA & PCIe
• RAID: "RAID 0, 1, 10"
• Wireless: Intel 802.11ax WiFi Module
  Supports IEEE 802.11a/b/g/n/ax
  Supports Dual-Band (2.4/5 GHz)
  Supports WiFi6 802.11ax (2.4Gbps)
  2 antennas
  Supports Bluetooth 5.0 + High speed class II
  Supports MU-MIMO
• LAN: 2.5GB LAN & GB LAN
• Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
• USB Ports Supported: "2 x USB 3.2 Gen2 Type-A & C (at back)
  8 x USB 3.2 Gen1 (6 at back, 2 at mid-board)
  4 x USB 2.0 (at mid-board)
  1 x Front Panel Type C USB 3.2 Gen2 Header"
• Back Panel I/O Ports: 2 x Antenna
  1 x PS/2 Mouse/Keyboard
  1 x HDMI
  1 x Optical SPDIF Out
  1 x USB 3.2 Gen2 Type-A
  1 x USB 3.2 Gen2 Type-C
  6 x USB 3.2 Gen1
  2 x RJ-45 LAN
  1 x Clear CMOS Button
  1 x BIOS Flashback Button
  HD Audio Jacks
• Internal I/O Connectors: 1 x SPI TPM
  1 x Power LED and Speaker
  1 x AMD Fan LED
  1 x RGB LED
  1 x Addressable LED
  1 x CPU Fan
  1 x CPU/Water Pump Fan
  4 x Chassis/Water Pump Fan
  1 x 24 pin ATX
  1 x 8 pin 12V
  1 x 4 pin 12V
  1 x Front Audio
• .: 1 x AMD LED Fan USB
  1 x Thunderbolt AIC
  2 x USB 2.0
  1 x USB 3.2 Gen1
  1 x Front Panel Type C USB 3.2 Gen2
  1 x Dr. Debug with LED
  1 x Power Button with LED
  1 x Reset Button with LED
  1 x Clear CMOS Button
• Accessories: "Quick Installation Guide, Support CD
  4 x SATA Data Cables
  1 x ASRock SLI_HB_Bridge_2S Card
  1 x ASRock WiFi 2.4/5 GHz Antenna
  1 x ASRock Screwdriver
  3 x Screws for M.2 Sockets
  2 x Standoffs for M.2 Sockets"
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 3.1000 kg
• Warranty: 3 Year Replacement Warranty
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#RGB Lighting: Yes (RGB)
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
