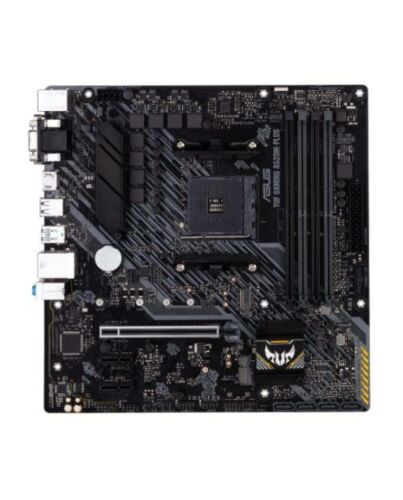

Asus TUF GAMING A520M-PLUS, AMD A520, AM4, Micro ATX, 4 DDR4, VGA, DVI, HDMI, M.2

£89.64
Asus TUF GAMING A520M-PLUS, AMD A520, AM4, Micro ATX, 4 DDR4, VGA, DVI, HDMI, M.2
Out of stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: AMD AM4
  • Chipset: AMD A520
  • #Hide#DDR Type: DDR4
  • CPU Support: Click here for CPU support

    *Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs
  • RAM Technology: DDR4 (Dual Channel)
  • RAM Slots: 4 x DIMM
  • RAM Speeds: 4800(O.C)/4600(O.C.)/4466(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz
  • Maximum Memory: 128GB
  • Graphics: Integrated Graphics Processor*

    Graphics specifications may vary between CPU types
  • Graphics Ports: 1 x VGA
    1 x DVI-D
    1 x HDMI
  • Multi-GPU Support: -
  • PCI/PCI Express: 1 x PCIe 3.0 x16 (supports x16 mode)
    2 x PCIe 3.0 x1
  • Storage: 4 x SATA III
    1 x M.2 (2242/2260/2280/22110) - SATA & PCIe
  • RAID: "RAID 0, 1, 10"
  • Wireless: -
  • LAN: GB LAN
  • Audio: Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC
  • USB Ports Supported: "6 x USB 3.2 Gen2 Type-A (at back)
    6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
    5 x USB 2.0 (2 at back, 3 at mid-board)"
  • Back Panel I/O Ports: 1 x USB 3.2 Gen Type-A
    4 x USB 3.2 Gen1 Type-A
    2 x USB 2.0
    1 x DVI-D
    1 x D-Sub
    1 x HDMI
    1 x Realtek L8200A 1Gb Ethernet
    3x Audio jacks
    1 x PS/2 Keyboard/Mouse combo
  • Internal I/O Connectors: 1 x 4-pin CPU Fan
    2 x 4-pin Chassis Fan
    1 x 24-pin Main Power
    1 x 8-pin +12V Power
    1 x M.2 slot (Key M)
    4 x SATA 6Gb/s
    1 x USB 3.2 Gen1
    2 x USB 2.0
    1 x Aura RGB
    1 x Clear CMOS
    1 x S/PDIF out
    1 x COM Port
  • .: 1 x Front Audio
    1 x 20-5 pin System Panel
    1 x SPI TPM header (14-1pin)
    1 x M.2 slot (Key E)
  • Accessories: 2 x SATA 6Gb/s cables
    1 x I/O Shield
    1 x M.2 SSD screw package
    1 x M.2 Key E screw package
    1 x TUF Gaming sticker
    1 x Support DVD
    1 x TUF Certification card
    1 x User manual
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 0.9600 kg
  • Warranty: 3 Years
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: GB LAN

More Information

More Information
MPN 90MB14Y0-M0EAY0
brand ASUS
Has reCAPTCHA No
ean 4718017823661
