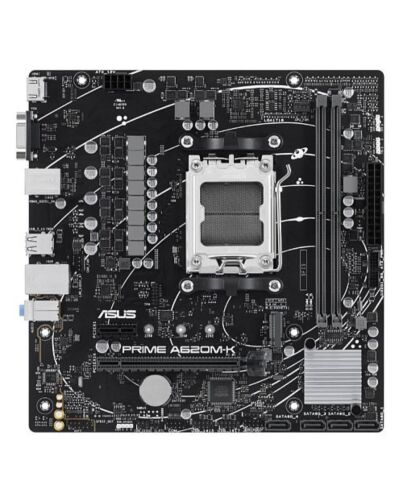

Asus PRIME A620M-K, AMD A620, AM5, Micro ATX, 2 DDR5, VGA, HDMI, GB LAN, PCIe4, 1x M.2

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: AMD AM5
• Chipset: AMD A620
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: "DDR5 (Dual Channel)
  Non-ECC, Un-buffered Memory"
• RAM Slots: 2 x DIMM
• RAM Speeds: Up to 6400+(OC)
• Maximum Memory: 96GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x VGA
  1 x HDMI
• PCI/PCI Express: 1 x PCIe 4.0 x16 (supports x16 mode)
  1 x PCIe 3.0 x1
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
• RAID: AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10
• Wireless: -
• LAN: GB LAN
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: Rear:
  4 x USB 3.2 Gen1 Type-A
  2 x USB 2.0

  Front:
  1 x USB 3.2 Gen1 header - supports 2 USB 3.2 Gen1 ports
  2 x USB 2.0 headers - supports 4 USB 2.0 ports
• Back Panel I/O Ports: 4 x USB 3.2 Gen1 Type-A
  2 x USB 2.0
  1 x VGA
  1 x HDMI
  1 x Realtek 1Gb Ethernet
  3 x Audio jacks
  1 x PS/2 Keyboard/Mouse combo
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V
  1 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 3.2 Gen1
  2 x USB 2.0
  2 x Addressable Gen2
  1 x Aura RGB
  1 x Clear CMOS
  1 x COM Port
• .: 1 x Front Panel Audio
  1 x S/PDIF Out
  1 x Speaker
  1 x SPI TPM (14-1pin)
  1 x 10-1 pin System Panel
• Accessories: 2 x SATA 6Gb/s cables
  1 x I/O Shield
  1 x Screw package for M.2 SSD
  1 x User guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.1000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
