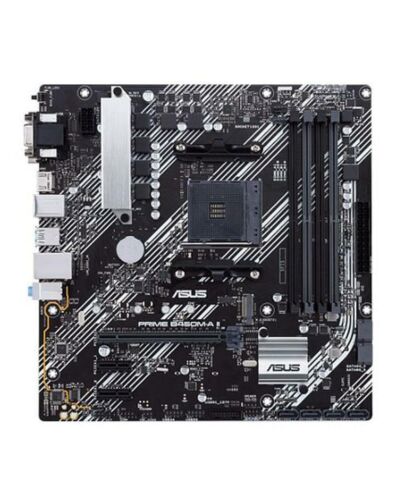

Asus PRIME B450M-A II, AMD B450, AM4, Micro ATX, 4 DDR4, VGA, DVI, HDMI, RGB Header, M.2

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: AMD AM4
• Chipset: AMD B450
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz
• Maximum Memory: 128GB
• Graphics: Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics
• Graphics Ports: 1 x VGA
  1 x DVI-D
  1 x HDMI
• Multi-GPU Support: -
• PCI/PCI Express: 1 x PCIe 3.0 x16
  2 x PCIe 2.0 x1
• Storage: 6 x SATA III
  1 x M.2 (2242/2260/2280/22110) - SATA & PCIe
  *PCIe mode not supported with Athlon CPUs
• RAID: "RAID 0, 1, 10"
• Wireless: -
• LAN: GB LAN
• Audio: Realtek 7.1-Channel High Definition Audio CODEC
• USB Ports Supported: "2 x USB 3.1 Gen2 Type-A (at back)
  6 x USB 3.1 Gen1 (4 at back, 2 at mid-board)
  4 x USB 2.0 (at mid-board)"
• Back Panel I/O Ports: 1 x PS/2 keyboard/mouse
  1 x DVI-D
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45)
  2 x USB 3.2 Gen2 Type-A
  4 x USB 3.2 Gen1
  3 x Audio jack(s
  1 x BIOS FlashBack Button
• Internal I/O Connectors: 1 x CPU Fan
  2 x Chassis Fan
  1 x USB 3.2 Gen1
  2 x USB 2.0
  1 x M.2 Socket 3 with M key
  1 x SPI TPM
  1 x COM port
  6 x SATA 6Gb/s
  1 x S/PDIF out
  1 x 24-pin EATX
  1 x 8-pin ATX 12V
  1 x Front audio
• .: 1 x System panel
  1 x Clear CMOS jumper
  1 x COM port
  1 x Speaker
  1 x RGB Header
• Accessories: Users manual
  I/O Shield
  2 x SATA 6Gb/s cables
  1 x M.2 Screw Package
  1 x Supporting DVD
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.9020 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
