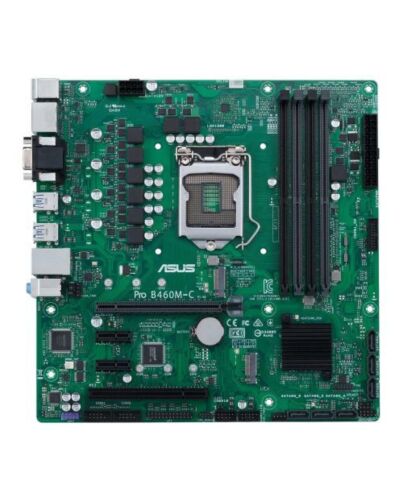

Asus PRO B460M-C/CSM - Corporate Stable Model, Intel B460, 1200, Micro ATX, 4 DDR4, VGA, HDMI, 2 DP, COM Port, LPC Header, M.2

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: Intel 1200
• Chipset: Intel B460
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: 2933/2800/2666/2400/2133 MH
• Maximum Memory: 128GB
• Graphics: Supports Intel HD Graphics
• Graphics Ports: 1 x VGA
  1 x HDMI
  2 x DisplayPort
• Multi-GPU Support: -
• PCI/PCI Express: 16-Lane CPU:
  1 x PCIe 3.0/2.0 x16 (x16 mode)

  Intel B460 Chipset:
  2 x PCIe 3.0/2.0 x1
  1 x PCI
• Storage: 6 x SATA III
  1 x M.2 (2242/2260/2280) - SATA & PCIe
  1 x M.2 (2242/2260/2280) - PCIe
• RAID: "RAID 0, 1, 5, 10"
• Wireless: -
• LAN: GB LAN
• Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC
• USB Ports Supported: "6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
  6 x USB 2.0 (2 at back, 4 at mid-board)"
• Back Panel I/O Ports: 1 x PS/2 keyboard
  1 x PS/2 mouse
  1 x D-Sub
  2 x DisplayPort
  1 x HDMI
  1 x LAN (RJ45)
  4 x USB 3.1 Gen1 Type-A
  2 x USB 2.0
  3 x Audio jacks
• Internal I/O Connectors: 1 x CPU Fan
  2 x Chassis Fan
  1 x MONO out
  1 x USB 3.2 Gen1
  2 x USB 2.0
  2 x M.2 Socket 3 with M key
  1 x SPI TPM
  1 x LPT
  2 x COM port
  6 x SATA 6Gb/s
  1 x 24-pin EATX
  1 x 8-pin ATX 12V
• .: 1 x Front audio
  1 x Internal speaker
  1 x System panel
  1 x Chassis Intrusion
  1 x Clear CMOS jumper
  1 x LPC Debug
• Accessories: I/O Shield
  2 x SATA 6Gb/s cables
  1 x M.2 Screw Package
  1 x Supporting DVD
  1 x ACC Express Activation Key Card
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.9100 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
