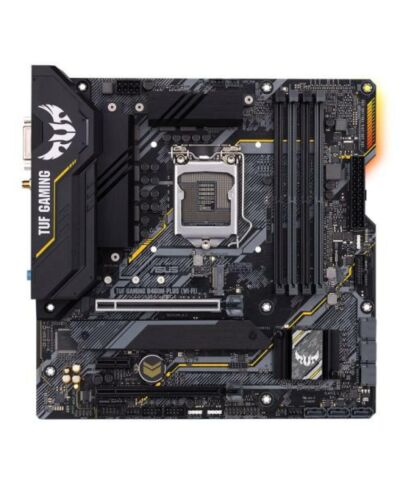

Asus TUF GAMING B460M-PLUS (WI-FI), Intel B460, 1200, Micro ATX, 4 DDR4, XFire, DVI, HDMI, DP, AX Wi-Fi, RGB Lighting, M.2

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: Intel 1200 - Comet Lake
• Chipset: Intel B460
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: 2933/2800/2666/2400/2133 MHz
• Maximum Memory: 128GB
• Graphics: Supports Intel HD Graphics
• Graphics Ports: 1 x DVI-D
  1 x HDMI
  1 x DisplayPort
• Multi-GPU Support: Supports AMD 2-Way CrossFireX Technology
• PCI/PCI Express: 1 x PCIe 3.0 x16 (x16 mode)
  1 x PCIe 3.0 x16 (x4 mode)
  1 x PCIe 3.0 x1
• Storage: 6 x SATA III
  1 x M.2 (2242/2260/2280) - SATA & PCIe
  1 x M.2 (2242/2260/2280/22110) - PCIe
• RAID: "RAID 0, 1, 5, 10"
• Wireless: Intel Wi-Fi 6 AX200
  2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  Support 1024QAM/OFDMA/MU-MIMO
  Supports up to 2.4Gbps max data rate
  Supports dual band frequency 2.4/5 GHz
  Supports bandwidth: HT20/HT40/HT80/HT160
  Supports PCIe interface
  Bluetooth v5.1
• LAN: GB LAN
• Audio: Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: "6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
  6 x USB 2.0 (2 at back, 4 at mid-board)"
• Back Panel I/O Ports: 1 x PS/2 keyboard/mouse combo
  1 x DVI
  1 x DisplayPort
  1 x HDMI
  1 x LAN (RJ45)
  4 x USB 3.2 Gen 1 Type-A
  2 x USB 2.0
  3 x Audio jacks
  1 x ASUS Wi-Fi Module
• Internal I/O Connectors: 1 x CPU Fan
  1 x CPU OPT Fan
  2 x Chassis Fan
  2 x Aura RGB Strip
  1 x Addressable Gen2
  1 x USB 3.2 Gen1
  2 x USB 2.0
  2 x M.2 Socket 3
  6 x SATA 6Gb/s
  1 x 24-pin EATX
  1 x 8-pin EATX 12V
  1 x Front audio
• .: 1 x System panel
  1 x Clear CMOS jumper
  1 x COM port header
• Accessories: I/O Shield
  2 x SATA 6Gb/s cables
  1 x TUF Gaming Sticker
  1 x TUF Certification card
  1 x Wi-Fi moving antenna
  1 x M.2 SSD screw package
  1 x M.2 Rubber Package
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.3600 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#RGB Lighting: Yes (RGB)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
