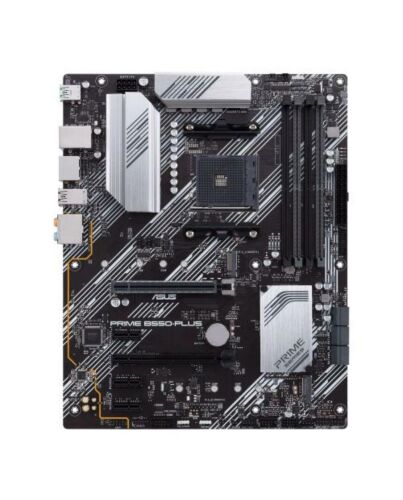

Asus PRIME B550-PLUS, AMD B550, AM4, ATX, 4 DDR4, HDMI, DP, XFire, PCIe4, M.2

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: AMD AM4
• Chipset: AMD B550
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support

  *Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: 3rd Gen AMD Ryzen CPUs:
  4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz

  Next Gen AMD Ryzen PRO CPUs:
  4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz
• Maximum Memory: 128GB
• Graphics: Integrated Graphics Processor*

  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPort
• Multi-GPU Support: Supports AMD 2-Way CrossFireX Technology
• PCI/PCI Express: 1 x PCIe 4.0 x16 (x16 mode)
  1 x PCIe 3.0 x16 (x4 mode)
  3 x PCIe 3.0 x1
• Storage: 6 x SATA III
  2 x M.2 (2242/2260/2280/22110) - SATA & PCIe
• RAID: "RAID 0, 1, 10"
• Wireless: -
• LAN: GB LAN
• Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC
• USB Ports Supported: "2 x USB 3.2 Gen2 (1 Type-A & 1 Type-C at back)
  6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
  6 x USB 2.0 (2 at back, 4 at mid-board)"
• Back Panel I/O Ports: 1 x DisplayPort
  1 x HDMI
  1 x LAN (RJ45)
  2 x USB 3.2 Gen2 (Type-A & Type-C)
  4 x USB 3.2 Gen1 (Type-A)
  2 x USB 2.0
  1 x Optical S/PDIF out
  5 x Audio jacks
• Internal I/O Connectors: 1 x CPU Fan
  1 x CPU OPT Fan
  3 x Chassis Fan
  1 x AIO_PUMP
  2 x Aura RGB Strip
  1 x Addressable Gen2
  1 x USB 3.2 Gen1
  2 x USB 2.0
  2 x M.2 Socket 3 with M key
  1 x SPI TPM
  6 x SATA 6Gb/s
  1 x Thunderbolt
• .: 1 x 24-pin EATX
  1 x 8-pin EATX 12V
  1 x Front audio
  1 x Thermal sensor
  1 x Clear CMOS
  1 x System panel
  1 x COM port
• Accessories: I/O Shield
  2 x SATA 6Gb/s cables
  1 x M.2 SSD screw package
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.3500 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
