  • Asus PRIME B660M-K D4, Intel B660, 1700, Micro ATX, 2 DDR4, VGA, HDMI, PCIe4, 2x M.2

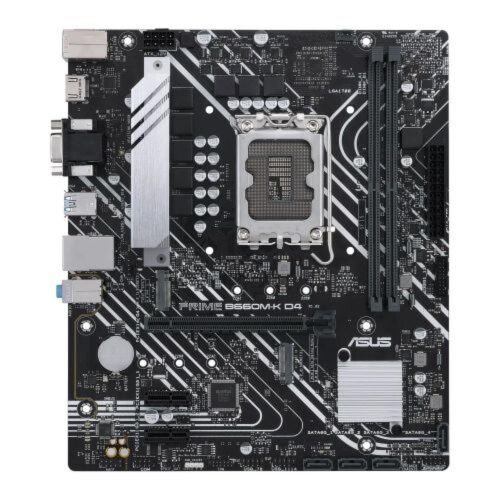

Asus PRIME B660M-K D4, Intel B660, 1700, Micro ATX, 2 DDR4, VGA, HDMI, PCIe4, 2x M.2

all

Asus PRIME B660M-K D4, Intel B660, 1700, Micro ATX, 2 DDR4, VGA, HDMI, PCIe4, 2x M.2

£165.42
Out of stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: Intel 1700
  • Chipset: Intel B660
  • #Hide#DDR Type: DDR4
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR4 (Dual Channel)
  • RAM Slots: 2 x DIMM
  • RAM Speeds: Up to 5333(OC)
  • Maximum Memory: 64GB
  • Graphics: Integrated Graphics*

    *Graphics specifications may vary between CPU types
  • Graphics Ports: 1 x VGA
    1 x HDMI
  • PCI/PCI Express: 1 x PCIe 4.0/3.0 x16
    2 x PCIe 3.0 x1
  • Storage: 4 x SATA III
    1 x M.2 (2242/2260/2280) - PCIe
    1 x M.2 (2242/2260/2280) - PCIe
  • RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
  • Wireless: -
  • LAN: GB LAN
  • Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
  • USB Ports Supported: "6 x USB 3.2 Gen1 Type-A (4 at back, 2 at mid-board)
    6 x USB 2.0 (2 at back, 4 at mid-board)"
  • Back Panel I/O Ports: 4 x USB 3.2 Gen1 Type-A
    2 x USB 2.0 Type-A
    1 x D-Sub
    1 x HDMI
    1 x Realtek 1Gb Ethernet
    3x Audio jacks
    1 x PS/2 Keyboard/Mouse combo
  • Internal I/O Connectors: 1 x 4-pin CPU Fan
    1 x 4-pin Chassis Fan
    1 x 24-pin Main
    1 x 8-pin +12V
    2 x M.2 (Key M)
    4 x SATA 6Gb/s
    1 x USB 3.2 Gen1
    2 x USB 2.0
    1 x RGB
    1 x Clear CMOS
    1 x COM Port
    1 x Front Panel Audio
  • .: 1 x S/PDIF Out
    1 x Speaker
    1 x SPI TPM (14-1pin)
    1 x 10-1 pin System Panel
  • Accessories: 2 x SATA 6Gb/s cables
    1 x I/O Shield
    2 x M.2 anchors
    1 x Support DVD
    1 x User manual
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 0.9300 kg
  • Warranty: 3 Years
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: GB LAN

More Information

More Information
MPN 90MB1950-M0EAY0
brand ASUS
ean 4711081511830
