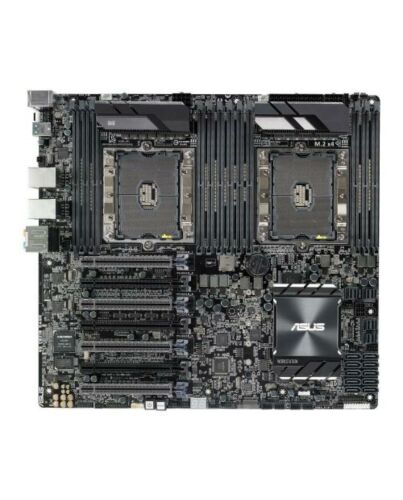

Asus WS C621E SAGE, Workstation, Intel C621, S 3647, EEB, Dual Scalable Xeon, 12 DDR4, Quad XFire/SLI, Dual LAN, M.2

Specification

• Motherboard Type: Server / Workstation
• Form Factor: EEB
• Socket: Intel 3647
• Chipset: Intel C621
• #Hide#DDR Type: DDR4
• CPU Support: 2 x sockets

  Click here for CPU support
• RAM Slots: 12 x DIMM
• RAM Speeds: "933/2666/2400 MHz - RDIMM, LR-DIMM"
• Maximum Memory: 1536GB
• Graphics: -
• Graphics Ports: -
• Multi-GPU Support: Supports NVIDIA 4-Way SLI Technology
  Supports AMD 4-Way CrossFireX Technology
• PCI/PCI Express: "3 x PCIe 3.0 x16 (x16 mode)
  2 x PCIe 3.0 x16 (Single at x16, dual at x8/x8)
  2 x PCIe 3.0 x16 (x8 mode)"
• Storage: 10 x SATA III
  4 x U.2
  1 x M.2 (2242/2260/2280/22110) - SATA & PCIe
• RAID: "RAID 0, 1, 5, 10"
• Wireless: -
• LAN: Dual GB LAN
• Audio: Realtek S1220A 7.1-Channel High Definition Audio CODEC
• USB Ports Supported: "2 x USB 3.1 Gen 2 (Type-A & C at back)
  8 x USB 3.1 Gen 1 (4 at back, 4 at mid-board)
  6 x USB 2.0 (4 at back, 2 at mid-board)"
• Back Panel I/O Ports: 1 x PS/2 keyboard/mouse
  2 x LAN (RJ45)
  2 x USB 3.1 Gen 2
  4 x USB 3.1 Gen 1
  4 x USB 2.0
  1 x Optical S/PDIF out
  1 x USB BIOS Flashback Button
  1 x 8-channel Audio I/O
• Internal I/O Connectors: 2 x USB 3.1 Gen 1
  1 x USB 2.0
  1 x M.2 Socket 3
  1 x TPM
  1 x COM port
  10 x SATA 6Gb/s
  1 x VROC_HW_Key
  2 x CPU Fan
  7 x Chassis Fan
  2 x 8-pin EATX 12V
  1 x 24-pin EATX
  1 x VGA connector
• .: 1 x Front audio
  1 x AUX panel
  1 x SMBus
  1 x 6-pin EATX 12V_3
  1 x System panel
  4 x U.2
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 3.7000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: GB LAN
