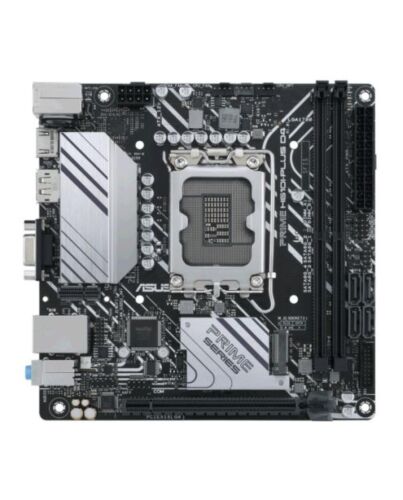

Asus PRIME H610I-PLUS D4-CSM - Corporate Stable Model, Intel H610, 1700, Mini ITX, 2 DDR4, VGA, HDMI, DP, 1x M.2

Specification

• Motherboard Type: Desktop
• Form Factor: Mini ITX
• Socket: Intel 1700
• Chipset: Intel H610
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 2 x DIMM
• RAM Speeds: 3200/3000/2933/2800/2666/2400/2133 MHz
• Maximum Memory: 64GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x VGA
  1 x HDMI
  1 x DisplayPort
• Multi-GPU Support: -
• PCI/PCI Express: 1 x PCIe 4.0 x16
• Storage: 4 x SATA III
  1 x M.2 (2260/2280) - SATA & PCIe
• LAN: GB LAN
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: "4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board)
  4 x USB 2.0 (2 at back, 2 at mid-board)"
• Back Panel I/O Ports: 2 x USB 3.2 Gen1 (Type-A)
  2 x USB 2.0
  1 x DisplayPort
  1 x D-Sub
  1 x HDMI
  1 x V-M.2 (Key E)
  1 x Realtek 1Gb Ethernet
  3 x Audio jacks
  1 x PS/2 Keyboard/Mouse combo
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  1 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V
  1 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 3.2 Gen1
  1 x USB 2.0
  1 x Clear CMOS
  1 x COM Port
  1 x Front Audio
• .: 1 x Mono-out (with Amp IC)
  1 x SMBUS
  1 x Speaker
  1 x SPI TPM (14-1pin)
  1 x 10-1 pin System Panel
• Accessories: 2 x SATA 6Gb/s cables
  1 x I/O Shield
  1 x M.2 Screw Package
  1 x Vertical M.2 Key E bracket set
  1 x Support DVD
  1 x User guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.8000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
