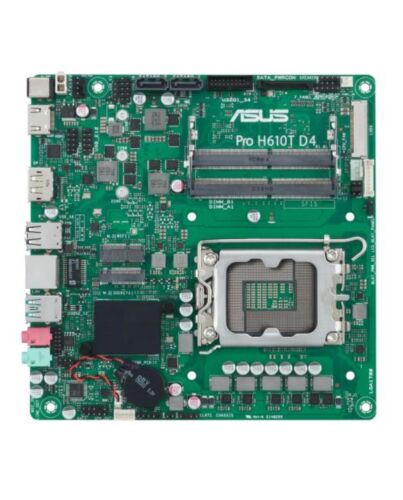

Asus PRO H610T D4-CSM - Corporate Stable Model, Intel H610, 1700, Thin Mini ITX, 2 DDR4 SO-DIMM, HDMI, DP, LVDS, 19v DC in, 1x M.2

Specification

• Motherboard Type: Desktop
• Form Factor: Thin Mini ITX
• Socket: Intel 1700
• Chipset: Intel H610
• #Hide#DDR Type: DDR4 SO-DIMM
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 SO-DIMM (Dual Channel)
• RAM Slots: 2 x SODIMM
• RAM Speeds: 3200/2933/2800/2666/2400/2133 MHz
• Maximum Memory: 64GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPort
  1 x LVDS connector
• Storage: 2 x SATA III
  1 x M.2 (2260/2280) - SATA & PCIe
• Wireless: -
• LAN: GB LAN
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: "2 x USB 3.2 Gen2 Type-A (at back)
  2 x USB 3.2 Gen1 Type-A (at mid-board)
  7 x USB 2.0 (2 at back, 5 at mid-board)"
• Back Panel I/O Ports: 2 x USB 3.2 Gen2
  2 x USB 2.0
  1 x DisplayPort
  1 x HDMI
  1 x Realtek 1Gb Ethernet
  2 x Audio jacks
  1 x DC Power (Support 19V)
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin Chassis Fan
  1 x 2-pin +19V
  1 x SATA power
  1 x M.2 (Key M)
  2 x SATA 6Gb/s
  1 x USB 3.2 Gen1
  2 x USB 2.0
  1 x USB 2.0
  1 x 2-pin internal DC power
  1 x Stereo speaker
  1 x DMIC
• .: 1 x Backlight inverter voltage selection
  1 x FPD brightness
  1 x Panel voltage selection
  1 x Panel off
  1 x Clear CMOS
  1 x Chassis Intrude
  1 x COM Port
  1 x COM debug
  1 x Front Panel Audio
  1 x LVDS
• .: 1 x M.2 slot (Key E)
  1 x Speaker
  1 x SPI TPM (14-1pin)
  1 x 10-1 pin System Panel
• Accessories: 2 x SATA 6Gb/s cables
  1 x SATA power cable
  2 x I/O Shields
  1 x Support DVD
  1 x ACC Express Activation Key Card
  1 x User guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.6800 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
