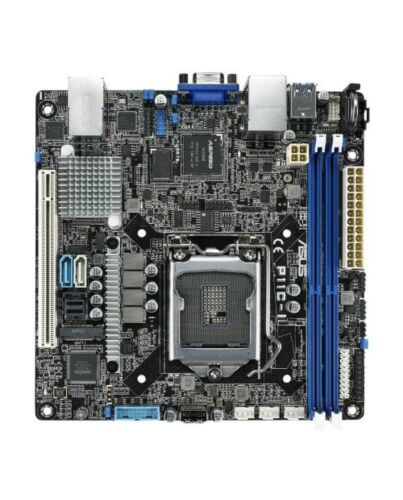

Asus P11C-I Rack-Optimized Server MB, Intel C242, 1151, Intel Xeon E, Mini ITX, Dual GB LAN, M.2, Server Management

Specification

• Motherboard Type: Server / Workstation
• Form Factor: Mini ITX
• Socket: Intel 1151 - Coffee Lake
• Chipset: Intel C242
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 2 x DIMM
• RAM Speeds: 2666/2400 UDIMM non ECC and with ECC
• Maximum Memory: 64GB
• Graphics: Aspeed AST2500 with 32MB VRAM
• Graphics Ports: 1 x VGA
• Multi-GPU Support: -
• PCI/PCI Express: Total Slots: 1

  Location 7: PCIe x16 (Gen3 X16 Link)
• Storage: 6 x SATA III*
  1 x M.2 (2242) - SATA & PCIe

  *4 by 1 mini-SAS HD
• RAID: "RAID 0, 1, 5, 10"
• Wireless: -
• LAN: Dual GB LAN & Mgmt LAN Port
• USB Ports Supported: 2 x USB 3.1 Gen2 Type-A (at back)
  2 x USB 3.1 Gen1 (at back)
  2 x USB 2.0 ports (at mid-board)
• Back Panel I/O Ports: 2 x USB 3.1 Gen2
  2 x USB 3.1 Gen1
  1 x VGA
  2 x GbE LAN + 1 x Mgmt LAN
• Internal I/O Connectors: 1 x TPM
  1 x PSU Power
  1 x USB 2.0
  3 x Fan
  1 x SMBus
  1 x Chassis Intruder
  2 x Front LAN LED
  1 x M.2 Connector NGFF Type: 2242
  1 x Onboard header for optional management card
• Accessories: 2 x Support CD
  1 x I/O shield
  2 x SATA 6G cables
  1 x Plate for LGA1151
  1 x COM port cable
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.0000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: GB LAN
