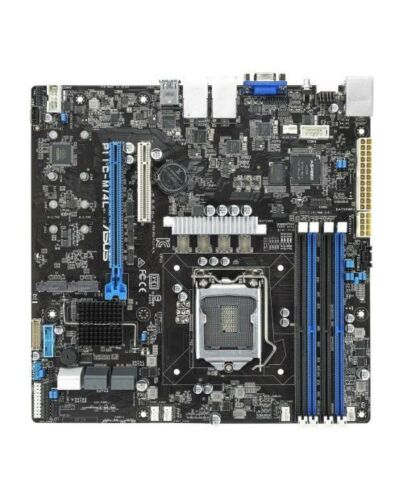

Asus P11C-M/4L Rack-Optimized Server MB, Intel C242, 1151, Intel Xeon E, Micro ATX, Quad GB LAN, M.2, Server Management

Specification

• Motherboard Type: Server / Workstation
• Form Factor: Micro ATX
• Socket: Intel 1151 - Coffee Lake
• Chipset: Intel C242
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: 2666/2400 MHz UDIMM non ECC and with ECC
• Maximum Memory: 128GB
• Graphics: Aspeed AST2500 with 32MB VRAM
• Graphics Ports: 1 x VGA
• Multi-GPU Support: -
• PCI/PCI Express: "Total Slot : 2

  Location 6 : PCIe x16 (Gen3 X16 Link), Auto switch to x8 link if slot 7 is occupied

  Location 7 : PCIe x8 (Gen3 X8 Link)"
• Storage: 6 x SATA III
  2 x M.2 (2242/2260/2280/22110) - SATA & PCIe
• RAID: "RAID 0, 1, 5, 10"
• Wireless: -
• LAN: Quad GB LAN & Mgmt LAN Port
• USB Ports Supported: "2 x USB 3.1 Gen2 Type-A (at back)
  4 x USB 3.1 Gen1 (2 at back, 2 at mid-board)
  2 x USB 2.0 ports (at mid-board)
  1 x USB 3.0 front connector (Type-A)"
• Back Panel I/O Ports: 1 x External Serial Port
  2 x USB 3.1 Gen 2
  2 x USB 3.1 Gen 1
  1 x VGA Port
  4 x GbE LAN + 1 x Mgmt LAN
• Internal I/O Connectors: 1 x TPM
  1 x PSU Power
  1 x COM
  1 x USB 3.0
  1 x USB 2.0
  1 x USB connector
  5 x Fan Header
  1 x SMBus
  1 x Chassis Intruder
  4 x Front LAN LED
  1 x Serial Port
  1 x VGA
• .: 2 x M.2
  1 x Onboard header for optional management card
• Accessories: 2 x Support CD
  1 x I/O shield
  6 x SATA 6G cables
  1 x Plate for LGA1151
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.9100 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 4 x LAN
• #Hide#Max LAN Speed: GB LAN
