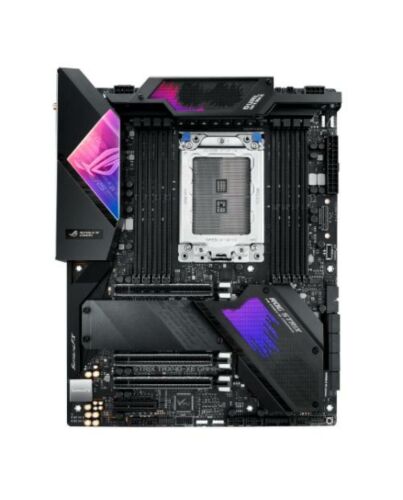

Asus ROG STRIX TRX40-XE GAMING, AMD TRX40, sTRX40, ATX, XFire/SLI, AX Wi-Fi, 2.5GB LAN, RGB Lighting, M.2, 64 Core CPU Support

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: AMD sTRX4
• Chipset: AMD TRX40
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Quad Channel)
• RAM Slots: 8 x DIMM
• RAM Speeds: 4666(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3466(O.C.)/3400(O.C.)/3200/2800/2666/2400/2133 MHz
• Maximum Memory: 256GB
• Graphics: -
• Graphics Ports: -
• Multi-GPU Support: Supports NVIDIA 2-Way SLI Technology
  Supports AMD 2-Way CrossFireX Technology
• PCI/PCI Express: 3 x PCIe 4.0 x16 (x16/x16/x16)
  1 x PCIe 4.0 x4
• Storage: 8 x SATA III
  2 x M.2 (2242/2260/2280/22110) - PCIe
  1 x M.2 (2242/2260/2280/22110) - SATA & PCIe
• RAID: "RAID 0, 1, 10"
• Wireless: "Intel Wi-Fi 6 AX200
  Wi-Fi 802.11 ax, Bluetooth 5.0
  Supports dual band frequency 2.4/5 GHz
  Supports 2x2 MU-MIMO
  Supports bandwidth: HT20/HT40/HT80/HT160
  Up to 1.73Gbps transfer speed"
• LAN: 2.5GB LAN & GB LAN
• Audio: ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
• USB Ports Supported: 1 x USB 3.2 Gen 2 Type-C (at back)
  7 x USB 3.2 Gen 2 Type-A (at back)
  4 x USB 3.2 Gen 1 (at mid-board)
  4 x USB 2.0 (at mid-board)
  1 x USB 3.2 Gen 2 front panel connector
• Back Panel I/O Ports: 1 x LAN (RJ45)
  8 x USB 3.2 Gen 2
  4 x USB 2.0
  1 x Optical S/PDIF out
  5 x Audio jacks
  1 x Anti-surge 2.5G LAN (RJ45)
  1 x USB BIOS FlashBack Button
• Internal I/O Connectors: 2 x Aura RGB Strip
  2 x Addressable Gen 2
  2 x USB 3.2 Gen 1
  2 x USB 2.0
  3 x M.2 Socket 1 with M key
  1 x TPM
  8 x SATA 6Gb/s
  1 x CPU Fan
  1 x CPU OPT Fan
  3 x Chassis Fan
  1 x AIO_PUMP
  1 x W_PUMP+
• .: 1 x 24-pin EATX
  2 x 8-pin ATX 12V
  0 x Front audio
  1 x Thermal sensor
  1 x Power-on button
  1 x Clear CMOS jumper
  1 x Node
  1 x USB BIOS FlashBack button
  1 x System panel
  1 x USB 3.2 Gen 2 front panel
• .: 1 x Speaker
  1 x Chipset Fan
  1 x VRM_HS_FAN
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 2.4800 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#RGB Lighting: Yes (RGB)
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
