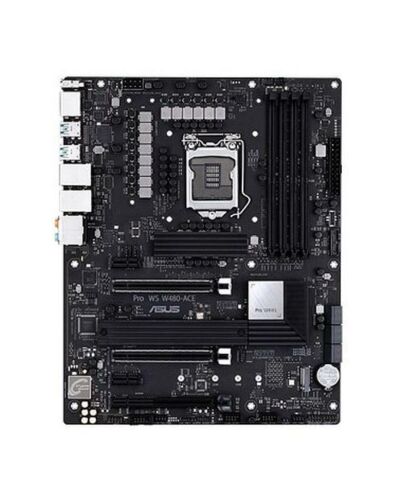

Asus PRO WS W480-ACE, Workstation, Intel W480, 1200 (Xeon W CPUs), ATX, HDMI, DP, XFire, GB & 2.5G LAN, Thunderbolt3, M.2

Specification

• Motherboard Type: Server / Workstation
• Form Factor: ATX
• Socket: Intel 1200 - Comet Lake
• Chipset: Intel W480
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz

  Non-ECC & ECC
• Maximum Memory: 128GB
• Graphics: Supports Intel HD Graphics
• Graphics Ports: 1 x HDMI
  1 x DisplayPort
• Multi-GPU Support: Supports AMD 3-Way CrossFireX Technology
• PCI/PCI Express: 2 x PCIe 3.0 x16 (x16 or dual x8)
  1 x PCIe 3.0 x16 (x4 mode)
  2 x PCIe 3.0 x1
• Storage: 6 x SATA III
  2 x M.2 (2242/2260/2280/22110) - SATA & PCIe
• RAID: "RAID 0, 1, 5, 10"
• Wireless: -
• LAN: 2.5GB LAN & GB LAN
• Audio: Realtek ALC S1220A 8-Channel High Definition Audio CODEC
• USB Ports Supported: "4 x USB 3.2 Gen2 Type-A (at back)
  4 x USB 3.2 Gen1 (2 at back, 2 at mid-board)
  4 x USB 2.0 (at mid-board)
  1 x USB 3.2 Gen1 Type-C front panel connecto"
• Back Panel I/O Ports: 2 x Thunderbolt 3 Type-C
  2 x DisplayPort IN for Thunderbolt 3
  1 x HDMI
  1 x LAN (RJ45)
  1 x LAN (2.5G)
  4 x USB 3.2 Gen 2 Type-A
  2 x USB 3.2 Gen 1 Type-A
  1 x Optical S/PDIF out
  5 x Audio jack(s
• Internal I/O Connectors: 1 x CPU Fan
  1 x CPU OPT Fan
  3 x Chassis Fan
  1 x AIO_PUMP
  1 x USB 3.2 Gen1 Type-C
  1 x USB 3.2 Gen1
  2 x USB 2.0
  2 x M.2 Socket 3 with M key
  6 x SATA 6Gb/s
  1 x Thunderbolt
  1 x 24-pin EATX
  1 x 8-pin EATX 12V
• .: 1 x Front audio
  1 x System panel
  1 x Thermal sensor
  1 x Clear CMOS jumper
  1 x COM port
• Accessories: I/O Shield
  4 x SATA 6Gb/s cables
  1 x M.2 Screw Package
  1 x DisplayPort cable
  1 x CPU Fan Holder
  1 x 2-in-1 Rubber pad
  1 x ACC Express Activation Key Card
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.6600 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
