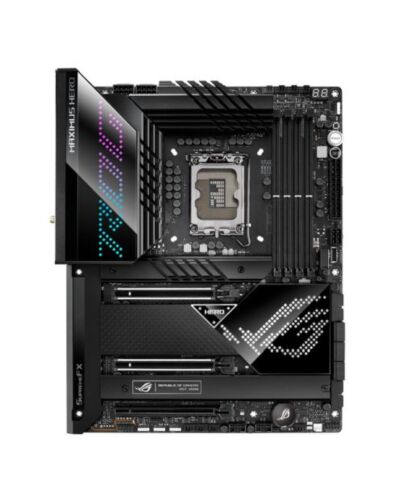

Asus ROG MAXIMUS Z690 HERO, Intel Z690, 1700, ATX, 4 DDR5, HDMI, 2 Thunderbolt, Wi-Fi, 2.5GB LAN, PCIe5, Hyper M.2 Card, RGB, 5x M.2

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: Intel 1700
• Chipset: Intel Z690
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: DDR5 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 6400+(OC)
• Maximum Memory: 128GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  2 x Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.4 and Thunderbolt video outputs
• PCI/PCI Express: 2 x PCIe 5.0 x16
  1 x PCIe 4.0 x16
• Storage: 6 x SATA III
  1 x M.2 (2242/2260/2280/22110) - PCIe
  1 x M.2 (2242/2260/2280) - PCIe
  1 x M.2 (2242/2260/2280) - SATA & PCIe
  Hyper M.2_1 via Hyper M.2 card (2242/2260/2280/22110) - PCIe
  Hyper M.2_2 via Hyper M.2 card (2242/2260/2280/22110) - PCIe
• RAID: "Intel Rapid Storage supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10"
• Wireless: Wi-Fi 6E
  2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5/6GHz frequency band
  Bluetooth v5.2 hardware ready
• LAN: 2.5GB LAN
• Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
• USB Ports Supported: "2 x Thunderbolt 4 USB Type-C (at back)
  1 x USB 3.2 Gen2 Type-C (at back)
  6 x USB 3.2 Gen2 Type-A (at back)
  4 x USB 3.2 Gen1 (at mid-board)
  6 x USB 2.0 (2 at back, 4 at mid-board)
  1 x USB 3.2 Gen2x2 Type-C front panel connector"
• Back Panel I/O Ports: "2 x Thunderbolt 4 USB Type-C
  7 x USB 3.2 Gen2 (6 Type-A, 1 Type-C)
  2 x USB 2.0
  1 x HDMI
  1 x Wi-Fi Module
  1 x Intel 2.5Gb Ethernet
  5x Gold-plated audio jacks
  1 x Optical S/PDIF out
  1 x BIOS FlashBack button
  1 x Clear CMOS button"
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  1 x 4-pin AIO Pump
  4 x 4-pin Chassis Fan
  1 x W_PUMP+
  1 x 2-pin Water In
  1 x 2-pin Water Out
  1 x 3-pin Water Flow
  1 x 24-pin Main
  2 x 8-pin +12V
  1 x 6-pin PCIe Graphics Card
  3 x M.2 (Key M)
• .: 6 x SATA 6Gb/s
  1 x USB 3.2 Gen2x2 Type-C
  2 x USB 3.2 Gen1
  2 x USB 2.0
  3 x Addressable Gen 2
  1 x AURA RGB
  1 x FlexKey button
  1 x Front Audio
  1 x SPI TPM (14-1pin)
  1 x Start button
• .: 1 x ReTry button
  1 x 10-1 pin System Panel
  1 x Thermal Sensor
• Accessories: 1 x ARGB RGB extension cable
  1 x RGB extension cable
  4 x SATA 6Gb/s cables
  ROG Hyper M.2 Card
  1 x ASUS Wi-Fi moving antennas
  1 x M.2 Q-Latch package & 2 for M.2 backplate
  1 x M.2 Rubber Package
  1 x Q-connector
  1 x ROG Graphics card holder
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 3.8000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
• #Hide#RGB Lighting: Out of the box RGB lighting
