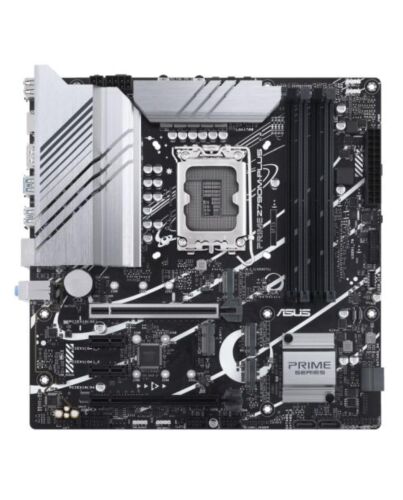

Asus PRIME Z790M-PLUS, Intel Z790, 1700, Micro ATX, 4 DDR5, HDMI, DP, GB LAN, PCIe5, 3x M.2

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: Intel 1700
• Chipset: Intel Z790
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: "DDR5 (Dual Channel)
  Non-ECC, Un-buffered Memory
  Supports Intel Extreme Memory Profile (XMP)
  OptiMem II"
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 7200+(OC)
• Maximum Memory: 192GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 1 x PCIe 5.0 x16
  1 x PCIe 4.0 x16 (supports x4 mode)
  2 x PCIe 4.0 x1
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
  1 x M.2 (2260/2280) - PCIe 4.0 x4
  1 x M.2 (2242/2260/2280) - SATA & PCIe 4.0 x4
• RAID: "Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10"
• Wireless: -
• LAN: GB LAN
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: Rear:
  1 x USB 3.2 Gen2x2 Type-C
  1 x USB 3.2 Gen2 Type-A
  4 x USB 3.2 Gen1 Type-A
  2 x USB 2.0

  Front:
  1 x USB 3.2 Gen1 Type-C
  2 x USB 3.2 Gen1
  4 x USB 2.0
• Back Panel I/O Ports: 1 x USB 3.2 Gen2x2 Type-C
  1 x USB 3.2 Gen2 Type-A
  4 x USB 3.2 Gen1 Type-A
  2 x USB 2.0
  1 x DisplayPort
  1 x HDMI
  1 x Intel 1Gb Ethernet
  3 x Audio jacks
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  1 x 4-pin AIO Pump
  3 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin + 12V
  1 x 4-pin + 12V
  3 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 3.2 Gen1 Type-C
  1 x USB 3.2 Gen1
  2 x USB 2.0
• .: 3 x Addressable Gen2
  1 x Aura RGB
  1 x Clear CMOS
  1 x COM Port
  1 x Front Panel Audio
  1 x M.2 (Key E)
  1 x S/PDIF Out
  1 x SPI TPM (14-1pin)
  1 x 20-3 pin System Panel
  1 x Thunderbolt (USB4)
• Accessories: 2 x SATA 6Gb/s cables
  1 x I/O Shield
  2 x Screw packages for M.2 SSD
  1 x User guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.5000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
