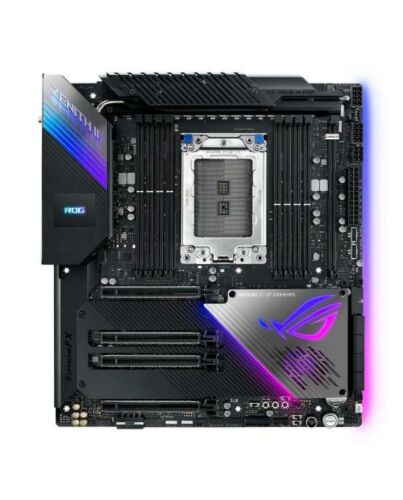

Asus ROG ZENITH II EXTREME ALPHA, AMD TRX40, sTRX40, EATX, 8 DDR4, XFire/SLI, AX Wi-Fi, 10G LAN, RGB Lighting, M.2

Specification

• Motherboard Type: Desktop
• Form Factor: Extended ATX
• Socket: AMD sTRX4
• Chipset: AMD TRX40
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Quad Channel)
• RAM Slots: 8 x DIMM
• RAM Speeds: 4733(O.C)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3400(O.C.)/2800/2666/2400/2133 MHz
• Maximum Memory: 256GB
• Graphics: -
• Graphics Ports: -
• Multi-GPU Support: Supports NVIDIA 3-Way SLI Technology
  Supports AMD 3-Way CrossFireX Technology
• PCI/PCI Express: "4 x PCIe 4.0 (x16, x16/x16, x16/x8/x16, x16/x8/x16/x8)"
• Storage: 8 x SATA
  2 x M.2 (2242/2260/2280) - PCIe
  1 x M.2 (2242/2260/2280) - PCIe
• RAID: "RAID 0, 1, 10"
• Wireless: "Intel Wi-Fi 6 AX200
  Wi-Fi 802.11 ax, Bluetooth 5.0
  Supports dual band frequency 2.4/5 GHz
  Supports 2x2 MU-MIMO
  Supports channel bandwidth: HT20/HT40/HT80/HT160
  Up to 1.73Gbps transfer speed"
• LAN: 10GB LAN & GB LAN
• Audio: ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
• USB Ports Supported: "1 x USB 3.2 Gen 2x2 Type-C (at back)
  1 x USB 3.2 Gen 2 Type-C (at back)
  3 x USB 3.2 Gen 2 Type-A (at back)
  8 x USB 3.2 Gen 2 (4 at back, 4 at mid-board)
  3 x USB 2.0 (at mid-board)
  2 x USB 3.2 Gen 2 front panel connector"
• Back Panel I/O Ports: 1 x LAN (RJ45)
  1 x USB 3.2 Gen 2x2 Type-C
  4 x USB 3.2 Gen 1
  5 x USB 3.2 Gen 2 Type-A & C)
  1 x Optical S/PDIF out
  1 x Clear CMOS button
  1 x USB BIOS FlashBack Button
  5 x LED-illuminated audio jacks
  1 x Aquantia AQC-107 10G LAN port
• Internal I/O Connectors: 2 x Aura RGB Strip
  2 x Addressable Gen 2
  2 x USB 3.2 Gen 1
  2 x USB 2.0
  2 x M.2 Socket 3
  1 x TPM
  8 x SATA 6Gb/s
  1 x CPU Fan
  1 x CPU OPT Fan
  2 x Chassis Fan
  1 x H_AMP fan
  2 x W_PUMP+
• .: 1 x WB_SENSOR
  1 x 6-pin EATX 12V
  1 x 24-pin EATX
  2 x 8-pin EATX 12V
  1 x 4-pin EZ_PLUG
  1 x Front audio
  7 x ProbeIt Measurement Points
  1 x Node
  1 x LN2 Mode
  1 x M.2 - Wi-Fi module pre-installed
• .: "1 x W_IN
  1 x W_OUT
  1 x W_FLOW
  2 x USB 3.2 Gen 2 front connector
  1 x Speaker
  1 x DIMM.2 Slot
  1 x Chipset Fan
  1 x VRM_HS_FAN
  Switches: RSVD, FS Mode, M.2_3 cold storage
  Buttons: Safe Boot, BIOS Switch, ReTry, Start, FlexKey "
• Accessories: 1 x ROG logo plate sticker
  6 x SATA cables
  1 x Fan Ext Card II kit
  1 x ROG big sticker
  1 x Thermistor cable
  1 x ROG coaster
  2 x ROG weave SATA 6G cable
  1 x ROG Thank you card
  1 x ROG DIMM.2 with heatsink
  1 x M.2 Pad for ROG DIMM.2
  1 x ROG Multi-Bit screwdriver
  1 x Wi-Fi moving antenna
• Additional Features: See Overview
• Package Weight: 4.2000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#RGB Lighting: Yes (RGB)
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: 10GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
