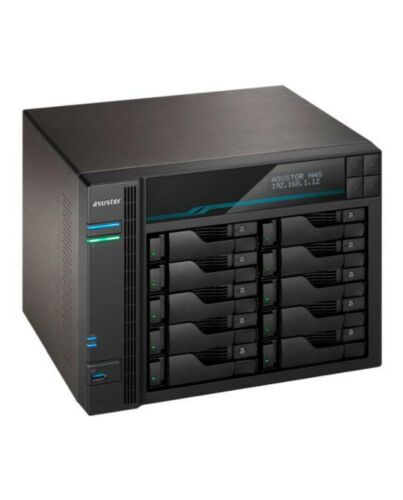

ASUSTOR AS7110T Lockerstor 10-Bay NAS Enclosure (No Drives), Xeon E-2224, 8GB DDR4, USB 3.2, 10G LAN, 3 x 2.5G LAN, 2 x M.2 NVMe

Specification

• Device Type: Desktop NAS Enclosure
• Series: ASUSTOR Lockerstor
• Drives Included: None
• #Hide#Drive Bays: 10 Bay
• Drive Bays: 10 x 3.5""/2.5"" HDD/SSD
  2 x M.2 NVMe
• Hot Swap: Yes
• Max. Capacity: "180 TB (18 TB HDD X 10, Capacity may vary by RAID types)"
• Drive Interface: SATA3 6Gb/s
  PCIe
• RAID Levels: "Single disk, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
  Support for Online RAID Level Migration"
• Interface(s): 1 x Front USB 3.2 Gen1
  2 x Rear USB 3.2 Gen2
  1 x 10 Gigabit Ethernet (10G/5G/2.5G/1G/100M)
  3 x 2.5 Gigabit Ethernet (2.5G/1G/100M)
• CPU: Intel Xeon E-2224
  x64 64-bit
  Quad Core 3.4GHz up to 4.6GHz
• System memory: 8GB DDR4 ECC SO-DIMM
  1 x 8GB
  Max 64GB (2x 32GB)
  2 x slots (1 free)
• Power Supply: 350W Power Supply
  Input Power Voltage: 100V to 240V AC
• Networking Support: "Network Protocols
  CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog

  Connection and transmission
  TCP/IP (IPv4 & IPv6)
  Jumbo Frame (MTU)
  VLAN
  EZ Connect
  Wireless Network
  DDNS and EZ-Route
  Link Aggregation: Supports 802.3ad and Six Other Modes for Load Balancing and/or Network Failover"
• File Sharing: "Internal Disk: EXT4 ,Btrfs
  External Disk: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT ,Btrfs"
• Active Directory Integration: Supports Windows Active Directory
  Supports Windows Active Directory / LDAP
• Management: "File System
  Int. Disk: EXT4 ,Btrfs
  Ext. Disk: FAT32, NTFS, EXT3 & 4, HFS+, exFAT ,Btrfs

  File Explorer
  Web-based File Management
  ISO File Mounting
  Share Links
  Task Monitor
  Browse Files
  Thumbnail Previews
  Data Access - Ext Optical
  Video playback

  Network Recycle Bin
  Share folder-based
  Maintains original directory structure and file permission
  On-click restore
  Scheduled emptying
  File extension
  Deletion Settings"
• Security: "AES 256-Bit Encryption
  Firewall: Unauthorized Access
  Alert Notifications: E-mail, SMS
  Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH
  Hardware Encryption Engine: AS10/31/32/40/52/53/6/61/62/63/64/65/66/70/71 Series
  RAID Scrubbing: integrity and consistency of RAID 5 and RAID 6 drive data"
• Software: ASUSTOR Data Master (ADM) Operating System
  Click here for details
• Additional Features: See Overview
• Operating Environment: Operation Temperature:
  0C~40C (32F~104F)
• Weight/Dimensions: 7.1 kg
  215.5(H) x 293(W) x 230(D) mm
• Package Weight: 8.6300 kg
• Warranty: 3 Years
