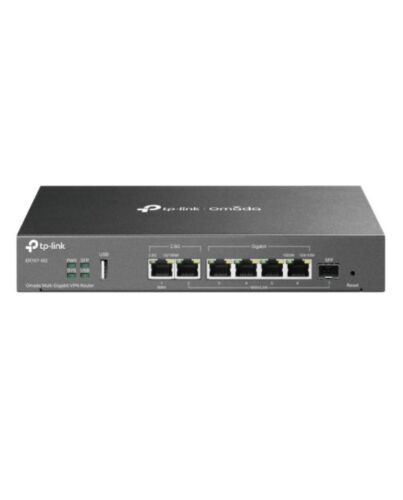

TP-LINK (ER707-M2) Omada Multi-Gigabit VPN Router, Omada SDN, 2x 2.5G Ports, Up to 6x WAN, SFP Port, Extensive Security Features

Specification

• Type: VPN Router
• Connectivity: Wired
• Max Single Band Wi-Fi Rate: None
• Max Wired Transfer Rate: 2.5 Gbps
• Interface(s): "1 x 2.5G RJ45 WAN Port
  1 x 2.5G RJ45 WAN/LAN Port
  1 x Gigabit SFP WAN/LAN Port
  4 x Gigabit RJ45 WAN/LAN Ports
  1 x USB 2.0 Port (Supports USB storage, & LTE backup w/ LTE dongle)"
• IEEE Standards & Protocols: "IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q

  TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP"
• Button(s): Reset Button
• Power Supply: 12V/1.5A Adapter

  Max Power Consumption:
  14.2 W (with USB2.0 connected)
  7.1 W (without USB2.0 connected)
• Dimensions: (WxDxH) 226 x 131 x 35 mm
• Security: Attack Defense:
  TCP/UDP/ICMP Flood Defense
  Block TCP Scan (Stealth FIN/Xmas/Null)
  Block Ping from WAN

  Filtering:
  Web Group Filtering
  URL Filtering
  Web Security

  ARP Inspection:
  Sending GARP Packets
  ARP Scanning
  IP-MAC Binding

  Access Control:
  Source/Destination IP Based Access Control
• DHCP: DHCP Server/Client
  DHCP Address Reservation
  Multi-IP Interfaces
  Multi-Net DHCP
• VPN Support: IPsec VPN
  PPTP VPN
  L2TP VPN
  OpenVPN
• Management: "Omada App / Centralized Management / Cloud Access
  - Requires OC300, OC200, Omada Cloud or Software Controller

  Maintenance:
  WMI
  Remote Management
  Export & Import Config
  SNMP v1/v2c/v3
  Diagnostics (Ping & Traceroute)
  NTP Synchronize
  Syslog Support

  Management Features:
  Automatic Device Discovery
  Intelligent Network Monitoring
  Abnormal Event Warnings
  Unified Configuration
  Reboot Schedule
  Captive Portal Configuration
  Zero-Touch Provisioning"
• Dynamic DNS: "Dyndns, No-IP, Peanuthull, Comexe"
• USB Application: "Supports USB storage, and LTE backup with LTE dongle"
• Additional Features: See Overview
• Environment: "Operating Temperature: 040C (32104F);
  Storage Temperature: -4070C (-40158F)
  Operating Humidity: 1090% RH non-condensing
  Storage Humidity: 590% non-condensing"
• Package Contents: ER707-M2
  Power Adapter
  Quick Installation Guide
• Package Type: Retail
• Package Weight: 1.6000 kg
• Warranty: Limited Lifetime
