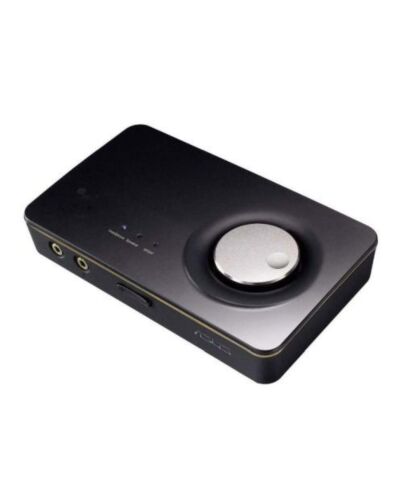

Asus XONAR U7 MKII 7.1 7.1 USB DAC with Headphone Amplifier, USB, Sonic Studio Software

Specification

• Internal/External: External
• Interface: USB 2.0
• Channels: 7.1
• Inputs/Outputs: Analog Output
  2 x RCA (Un-Balanced)
  4 x 3.5 mm jack (1/8"") (Headphone out /Side out/Center-Subwoofer out/Rear out)

  Analog Input
  1 x 3.5 mm jack (1/8"") (Line-in/ Mic-in combo)

  Digital
  1 x S/PDIF out (1 x Coaxial)
• Chipset: C-Media USB2.0 6632AX High-Definition Sound Processor (Max. 192KHz/24bit)
• Signal-to-Noise Ratio: Output Signal-to-Noise Ratio (A-Weighted):
  114 dB

  Input Signal-to-Noise Ratio (A-Weighted):
  110 dB
• Frequency Response: "10 Hz to 46 KHz (-3dB, 24bit/96KHz input)"
• Sample Rate and Resolution: Analog Playback Sample Rate and Resolution:
  44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit

  Analog Recording Sample Rate and Resolution:
  44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit

  S/PDIF Digital Output:
  44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
• Additional Features: See Overview
• Software: Sonic Studio software suite
• Accessories: 1 x S/PDIF adapter
  1 x Quick start guide
  1 x USB cable
• Weight/Dimensions: 130 x 80 x 25 mm ( L x W x H )
• Package Type: Retail
• Package Weight: 0.6500 kg
• Warranty: 2 Years
