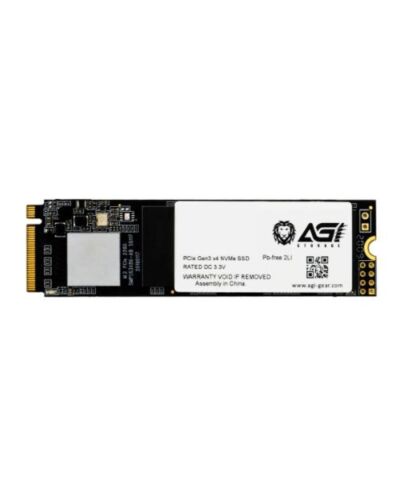

AGI 1TB AI198 M.2 NVMe SSD, M.2 2280, PCIe3, Intel TLC NAND, R/W 2103/1699 MB/s, 214K/24K IOPS

Specification

• Series: AGI AI198
• #Hide#Capacity Range: 960 - 1000 GB
• Capacity: 1 TB
• Form Factor: M.2 2280
• #Hide#Interface Type: PCI Express
• Interface: PCIe 3.0 x4
• Read: Up to 2103 MB/s
• Write: Up to 1699 MB/s
• Max Random 4K R/W: "21,3828/ 24,2586 IOPS"
• Power Consumption: Operating Voltage: 3.3V
  Power Slumber: 50mW
  Power DESLVP: 2mW
• Weight/Dimensions: 6g
  80 x 22 x 3.5 mm
• Operating Temperatures: 0C to 70C
• Storage Temperatures: -40C to 85C
• Shock Resistance: 1500G/0.5ms
• MTBF: "1,600,000 hours"
• Total Bytes Written (TBW): 400TB
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.0350 kg
• Warranty: 3 Years or if the drive exceeds Total Bytes Written (see above)
