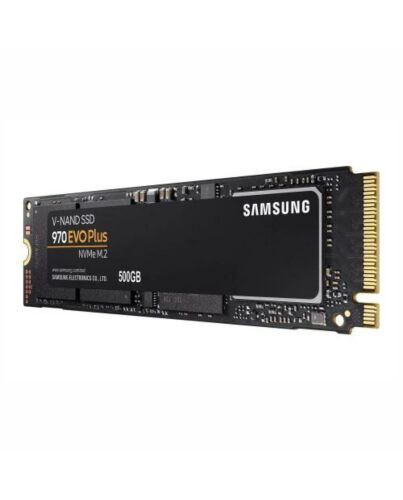

Samsung 500GB 970 EVO PLUS M.2 NVMe SSD, M.2 2280, PCIe, V-NAND, R/W 3500/3200 MB/s, 480K/550K IOPS

Specification

• Series: Samsung 970 EVO PLUS
• #Hide#Capacity Range: 480 - 512 GB
• Capacity: 500 GB
• Form Factor: M.2 2280
• #Hide#Interface Type: PCI Express
• Interface: PCIe 3.0 x4
• Controller: Samsung Phoenix Controller
• Read: "Up to 3,500 MB/s"
• Write: "Up to 3,200 MB/s"
• Max Random 4K R/W: "480,000 / 550,000 IOPS"
• Power Consumption: Average: 5.8 W
  Max. 30 mW
• Weight/Dimensions: 8g
  80.15 x 22.15 x 2.38 mm
• Operating Temperatures: 0 - 70 Operating Temperature
• Shock Resistance: "1,500 G & 0.5 ms (Half sine)"
• Vibration Non-operating: "20~2000Hz, 20G"
• MTBF: "1,500,000 Hours"
• Total Bytes Written (TBW): 300 TBW
• Additional Features: AES 256-bit Full Disk Encryption
  Encrypted Drive(IEEE1667)
  Garbage Collection
  S.M.A.R.T Support
  Samsung Data Migration Software Support
  Samsung Magician Software Support
  TCG/Opal V2.0
  TRIM support (O/S dependent)
• Package Type: Retail
• Package Weight: 0.0760 kg
• Warranty: 5 Years or if the drive exceeds Total Bytes Written (see above)
