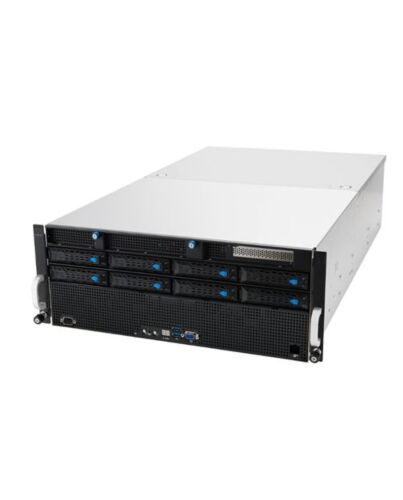

Asus (ESC8000A-E11) AMD EPYC 7003 4U Dual-Socket, GPU Barebone Server, AMD SP3, Supports 8 GPUs, OCP 3.0, PCIe 4.0, M.2, 2+2 3000W Titanium PSU

Specification

• Form Factor: 4U
• CPU Socket: AMD SP3
• #Hide#No. of CPU Sockets: Dual Socket
• CPU Support: 2 x Socket SP3 (LGA 4094)
  AMD EPYC 7003 Series

  Click here for CPU support list
• Memory: "Maximum Memory :
  8 TB

  Total Slots :
  32 Slots (8-channel per CPU, 16 DIMM per CPU)

  Memory Type :
  DDR4 3200 RDIMM
  DDR4 3200 LRDIMM
  DDR4 3200 LR-DIMM 3DS

  Memory Size :
  256GB, 128GB, 64GB, 32GB, 16GB"
• Expansion Slots: "Rear:
  8 x PCIe x16 slots (Gen4 x16 link, FH,FL) for dual-slot GPU cards
  1 x PCIe x16 slots (Gen4 x16 or x8 link, FH,HL) or OCP3.0 NIC socket (optional)
  1 x PCIe x8 slots (Gen4 x8 link, LP,HL) (optional)

  Front:
  1 x PCIe x16 slot (Gen4 x8 link, FH,HL) for HBA/RAID cards"
• HDD Bays: 8 x 3.5"" or 2.5"" Hot-swap Storage Bays (Backplane Supports 4 x SATA/SAS + 4 SATA/SAS/NVMe Devices)
• Networking: No networking included
• Front I/O Ports: 1 x Q-code/port-80 LED
  2 x USB 3.2 Gen1 ports
• Rear I/O Ports: 1 x Management port (RJ45)
• Switch/LED: Rear:
  1 x Location LED

  Front:
  1 x Power Button/LED
  1 x Location Button/LED
  1 x Message LED
• Power Supply: 2+2 Redundant 3000W 80 PLUS Titanium Power Supply
• OS Support: Please find the latest OS support from https://servers.asus.com/support/os
• Management Solution: ASUS Control Center Enterprise (Trial)
• Regulatory Compliance: "BSMI, CE, FCC(Class A)"
• Dimensions/Weight: 800mm x 440mm x 175.6mm (4U)
  Net Weight: 39 Kg.
  Gross Weight: 49 Kg.
• Environment: Operation temperature: 10C ~ 35C / Non operation temperature: -40C ~ 70C Non operation humidity: 20% ~ 90% ( Non condensing)
• Package Weight: 52.0000 kg
• Additional Features: See Overview
• Warranty: 3 Year Advanced Replacement
• #Hide#Memory Slots: 32 Memory Slots
• #Hide#Maximum Memory: 8000 GB
