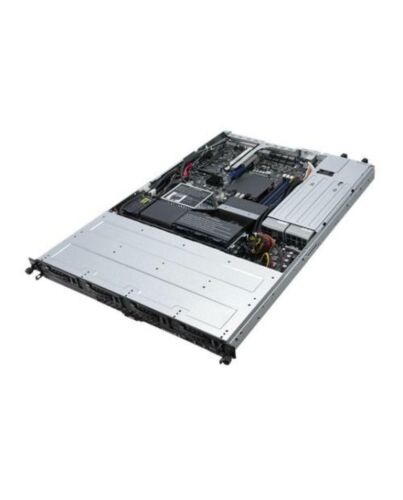

Asus (RS300-E10-RS4) 1U Xeon E Rack-Optimised Barebone Server, Intel C242, S 1151, 4x DDR4, 4 Bay Hot-Swap, 2x M.2, Quad GB LAN, 450W PSU

Specification

• Form Factor: 1U
• CPU Socket: Intel 1151 - Cofee Lake
• #Hide#No. of CPU Sockets: Single Socket
• Chipset: Intel C242
• CPU Support: 1 x Socket LGA1151
  Xeon E-2100 family
  Xeon E-2200 family
  The 8th/9th gen IntelCore i3/Pentium/Celeron

  Click here for CPU support list
• Memory: "4 slots(2-channel)
  Maximum up to 128GB UDIMM
  DDR4 2666/2400 UDIMM non ECC and with ECC
  Takes 32GB, 16GB, 8GB, 4GB UDIMM modules"
• Expansion Slots: 1 x PCI-E x16 (x8 Gen3 Link)
  1 x PCI-E x8 (x8 Gen3 Link)
• Storage: "SATA Controller:
  6 x SATA3 6Gb/s *1
  2 x M.2 (2242/2260/2280/22110) - SATA & PCIe *2
  Rapid Storage Tech Enterprise(RSTe) (Linux/Windows)
  Software RAID 0, 1, 5, 10"
• .: "SAS Controller:
  ASUS PIKE II 3008-8i 8-port SAS 12G RAID card - not included
  ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card - not included

  *1 4 by miniSAS HD + 2 x SATA
  *2 PCIE or SATA signal, gray SATA port will disable when M.2 is occupied"
• HDD Bays: 4 x 3.5 Hot-Swap HDD Bays
  2 x SSD Internal SSD Bays
  2 x M.2 (NGFF 22110/2280/2260/2242)
• Auxiliary Storage FDD/CD/DVD: 1 x Slim-type Optical Drive Bay
  Options: No Device / DVD-RW / DVD ROM
• Networking: 4 x Intel I210AT + 1 x Mgmt LAN
• Graphics: Aspeed AST2500 with 32MB VRAM
• Front I/O Ports: 2 x USB 3.0
  1 x VGA
• Rear I/O Ports: 4 x RJ-45 (Gigabit)
  2 x USB 3.1
  2 x USB 3.0
  1 x VGA
  1 x RJ-45 ports (One for ASMB9-iKVM) - not included
• Switch/LED: Rear Switch/LED:
  1 x Q-Code/Port 80 LED
  1 x Power switch

  Front Switch/LED:
  1 x Power switch/LED
  1 x Location switch/LED
  1 x Reset switch
  1 x HDD Access LED
  1 x Message LED
  LAN 1-4 LED
• Power Supply: "1+1 Redundant 450W 80 PLUS Gold Power Supply
  Rating: 100-127Vac/200-240Vac,8A/4A ,47-63Hz, Class 1"
• OS Support: Windows Server 2019
  Windows Server 2016
  RedHat Enterprise Linux
  SuSE Linux Enterprise Server
  CentOS
  VMware
• Management Solution: ASUS Control Center
  Optional ASMB9-iKVM for KVM-over-IP
• Regulatory Compliance: "BSMI, CE, RCM, FCC(Class A)"
• Dimensions/Weight: 615 x 444 x 44 mm (1U)
  12.87 Kg
• Environment: Operating temperature: 10C ~ 35C
  Non operating temperature: -40C ~ 70C
  Non operating humidity: 20% ~ 90% ( Non condensing)
• Package Weight: To be confirmed
• Additional Features: See Overview
• Warranty: 3 Year Advanced Replacement
• #Hide#Memory Slots: 4 Memory Slots
• #Hide#Maximum Memory: 128 GB
• #Hide#No. LAN Ports: 4
• #Hide#Max LAN Speed: GB LAN
