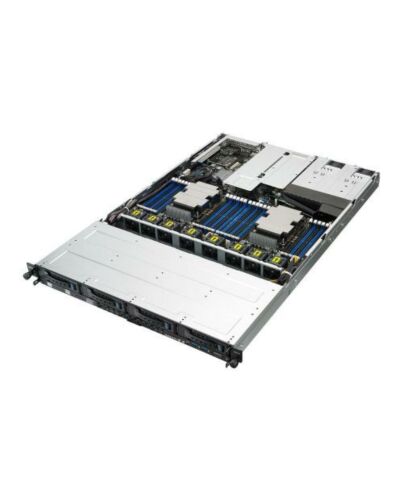

Asus (RS700-E9-RS4) 1U Rack High Performance Cache Barebone Server, Intel C621, Dual Socket 3647, 24 DDR4, 4 Bay Hot-Swap, Dual GB LAN, 800W PSU

Specification

• Form Factor: 1U
• CPU Socket: Intel 3647
• #Hide#No. of CPU Sockets: Dual Socket
• Chipset: Intel C621
• CPU Support: 2 x Socket
  1st and 2nd Gen Xeon Scalable CPUs

  Click here for CPU support list
• Memory: "24 slots (6-channel per CPU, 12 DIMM per CPU)
  Maximum up to 3072GB LR-DIMM 3DS
  DDR4 2933/2666/2400 RDIMM
  DDR4 2933/2666/2400 LRDIMM
  DDR4 2933/2666/2400 LR-DIMM 3DS
  Intel Optane DC Persistent Memory "
• Expansion Slots: "1 x PCIe x16 (Gen3 x16 link), FH, HL
  1 x PCIe x16 (Gen3 x8 link), LP, HL
  1 x PCIe x8 (Gen3 x8 link), LP, HL
  1 x OCP 2.0 Mezzanine (Gen3 x16 link)"
• Storage: "10 x SATA3 6Gb/s ports + 1 x M.2 connector
  or
  9 x SATA 6Gb/s ports + 2 x M.2 connector
  Intel Rapid Storage Tech Enterprise(RSTe) (Linux/Windows)
  (Software RAID 0, 1, 5, 10 )
  IntelVROC (For Linux/Windows)
  (Software RAID 0/1/5/10 )

  Optional kits Controller (not included):
  ASUS PIKE II 3008 8-port SAS HBA card
  ASUS PIKE II 3108 8-port SAS HW RAID card
  12G SAS Support"
• HDD Bays: "4 x 3.5"" Hot-swap Storage Bays
  2 x M.2 (22110, 2280, 2260, 2242)
  (Support SATA/PCIe M.2,SATA RAID)
  *SAS support via PIKE"
• Auxiliary Storage FDD/CD/DVD: 1xslim-type Optical Drive Bay
  Options: No Device/DVD-RW
• Networking: 1 x Dual Port Intel I350-BT2 Gigabit LAN controller + 1 x Mgmt LAN
• Graphics: Aspeed AST2500 with 64MB VRAM
• Front I/O Ports: 2 x USB 3.0
  1 x VGA
• Rear I/O Ports: 2 x USB 3.
  1 x VGA
  2 x RJ-45 GbE LAN
  1 x RJ-45 Mgmt LAN
• Switch/LED: Rear Switch/LED:
  1 x Power switch
  1 x Q-Code/Port 80 LED
  1 x Message LED
  1 x HDD LED
  1 x Location LED

  Front Switch/LED:
  1 x Power switch/LED
  1 x Location switch/LED
  1 x Message LED
  1xHDD LED
  LAN 1-4 LED
  *LAN3-4 for Mezzazine card use
• Power Supply: +1 Redundant 800W 80 PLUS Platinum Power Supply
• OS Support: Windows Server 2016
  Windows Server 2012 R2
  RedHat Enterprise Linux
  SuSE Linux Enterprise Server
  CentOS
  Ubuntu
  VMware
  Citrix XenServer
  Fedora
• Management Solution: ASUS Control Center(Classic)
  On-Board ASMB9-iKVM for KVM-over-IP
• Regulatory Compliance: "BSMI, CE, RCM, FCC(Class A)"
• Dimensions/Weight: 686 x 444 x 44 mm
  16.5 Kg
• Environment: Operation temperature: 10C ~ 35C
  Non operation temperature: -40C ~ 60C
  Non operation humidity: 20% ~ 90% ( Non condensing)
• Package Weight: To be confirmed
• Additional Features: See Overview
• Warranty: 3 Year Advanced Replacement
• #Hide#Memory Slots: 24 Memory Slots
• #Hide#Maximum Memory: 3072 GB
• #Hide#No. LAN Ports: 2
• #Hide#Max LAN Speed: GB LAN
