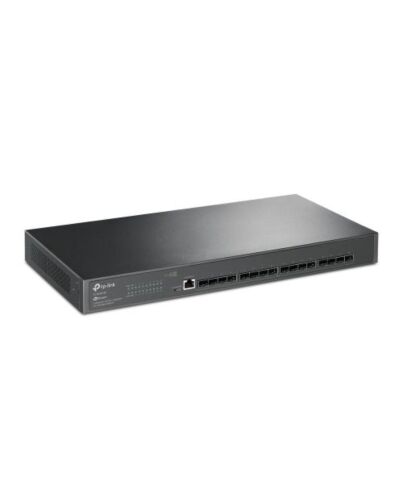

TP-LINK (TL-SX3016F) JetStream 16-Port 10GE SFP+ L2+ Managed Switch, Centralized Management, Dual Redundant PSUs, Rackmountable

Specification

• Rackmountable: Yes
• Managed: Yes
• Number of Ports: 16
• #Hide#Max SFP Transfer Rate: 10G SFP
• Interface(s): 16 x 10GE SFP+ Slots
  1 x RJ45 Console Port
  1 x Micro-USB Console Port
• PoE Ports (RJ45): -
• Switching Capacity: 320 Gbps
• Power Supply: 100-240 V AC~50/60 Hz

  Max Power Consumption: 32.74 W (220 V / 50 Hz)
• Dimensions: (WxDxH) 440 x 220 x 44 mm
• Mac Address Table: 32 K
• Packet Forwarding Rate: 238.08 Mpps
• Jumbo Frame: 9 KB
• Advanced Functions: "Automatic Device Discovery
  Batch Configuration
  Batch Firmware Upgrading
  Intelligent Network Monitoring
  Abnormal Event Warnings
  Unified Configuration
  Reboot Schedule
  ZTP (Zero-Touch Provisioning)
  Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller"
• Quality of Service: 8 priority queues
  802.1p CoS/DSCP priority
  Queue scheduling
  Bandwidth Control
  Smoother Performance
  Action for Flows
• Layer Features: L2 and L2+ Features
  Link Aggregation
  Spanning Tree Protocol
  Loopback Detection
  Flow Control
  Mirroring

  L2 Multicast
  IGMP Snooping
  IGMP Authentication
  MLD Snooping
  MVR
  Multicast Filtering: 256 profiles and 16 entries per profile
• VLAN: "VLAN Group
  802.1Q Tagged VLAN
  MAC VLAN: 30 Entries
  Protocol VLAN: Protocol Template 16, Protocol VLAN 16
  Private VLAN
  GVRP
  VLAN VPN (QinQ)
  Voice VLAN"
• Access Control: Time-based ACL
  MAC ACL
  IP ACL
  Combined ACL
  Packet Content ACL
  IPv6 ACL
  Policy
  ACL apply to Port/VLAN
• Security: IP-MAC-Port Binding
  IPv6-MAC-Port Binding
  DoS Defend
  Static/Dynamic Port Security
  Broadcast/Multicast/Unicast Storm Control
  802.1X
  AAA (including TACACS+)
  Port Isolation
  Secure web management through HTTPS with SSLv3/TLS 1.2
  Secure Command Line Interface (CLI) management with SSHv1/SSHv2
  IP/Port/MAC based access control
• Management: "Web-based GUI
  SNMP v1/v2c/v3
  SDM Template
  DHCP/BOOTP Client
  802.1ab LLDP/LLDP-MED
  DHCP AutoInstall
  Dual Image, Dual Configuration
  CPU Monitoring
  Cable Diagnostics
  EEE
  Password Recovery
  SNTP
  System Log
  Command Line Interface (CLI) through the console port, telnet"
• Environment: "Operating Temperature: 045 C (32113 F);
  Storage Temperature: -4070 C (-40158 F)
  Operating Humidity: 1090% RH non-condensing
  Storage Humidity: 590% RH non-condensing"
• Package Contents: TL-SX3016F Switch
  2 x Power Cords
  Quick Installation Guide
  Rackmount Kit
  Rubber Feet
• Package Type: Retail
• Package Weight: 4.0000 kg
• Warranty: Limited Lifetime
• #Hide#POE: No
