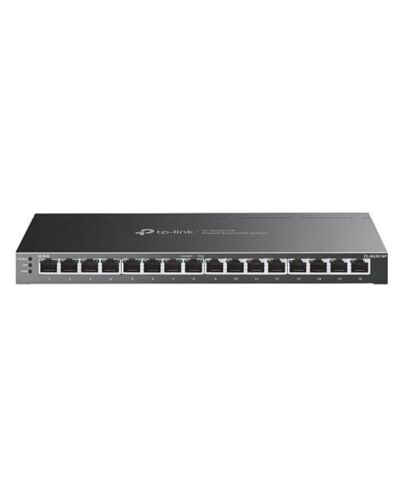

TP-LINK (SG2016P) JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+, Centralized Management

Specification

• Rackmountable: No
• Managed: Smart
• Number of Ports: 16
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• Interface(s): 16 x 10/100/1000 Mbps RJ45 Ports
  Auto-Negotiation/Auto MDI/MDIX
• PoE Ports (RJ45): Ports 18 Support 802.3at/af PoE+
  Power Supply: 120 W
• Bandwidth: 16 Gbps
• Standards and Protocols: "IEEE 802.3i, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x"
• Power Supply: External Power Adapter (Output: 53.5 VDC/ 1.31 A)
• Dimensions: 286 x 111.7 x 25.4 mm
• Mac Address Table: 8k
• Jumbo Frame: 9 KB
• Additional Features: See Overview
• Quality of Service: 802.1p CoS/DSCP priority
  8 priority queues
  Priority Schedule Mode
  Queue Weight Config
  Bandwidth Control
  Smoother Performance
  Storm Control
• Layer Features: "L2 and L2+:
  DHCP Relay
  DHCP L2 Relay
  Link Aggregation
  Spanning Tree Protocol
  Loopback Detection
  Flow Control
  Mirroring
  Device Link Detect Protocol (DLDP)
  802.1ab LLDP/ LLDP-MED

  L2 Multicast:
  511 IPv4, IPv6 shared multicast groups
  IGMP Snooping
  Multicast VLAN Registration (MVR)
  Multicast Filtering
  MLD Snooping
  Limited IP Multicast (256 profiles and 16 entries per profile)"
• VLAN: VLAN Group - Max. 4K VLAN Groups
  802.1Q tag VLAN
  MAC VLAN: 12 Entries
  Protocol VLAN
  GVRP
  Voice VLAN
• Access Control: Support up to 230 entries
  Time-Range
  Time-based ACL
  MAC ACL
  IP ACL
  IPv6 ACL
  Combined ACL
  Rule Operation
  Policy Action
  ACL Rules Binding
  Actions for flows
• Security: AAA
  802.1X
  IP/IPv6-MAC Binding
  IP Source Guard
  IPv6 Source Guard
  DoS Defend
  Static/Dynamic/Permanent Port Security
  Broadcast/Multicast/Unicast Storm Control
  Port Isolation
  Secure web management through HTTPS with SSLv3/TLS 1.2
  Secure CLI management with SSHv1/SSHv2
  IP/Port/MAC-based access control
• Management: "Require Omada Controllers:
  Omada App
  Centralized Management
  Cloud Access
  Zero-Touch Provisioning

  Management Features:
  Web-based GUI
  Command Line Interface (CLI) through telnet
  SNMPv1/v2c/v3
  SNMP Trap/Inform
  RMON (1,2,3,9 groups)
  SDM Template
  DHCP/BOOTP Client
  Dual Image, Dual Configuration
  CPU Monitoring
  Cable Diagnostics
  EEE
  SNTP
  System Log"
• Environment: Operating Temperature: 040C (32104F)
  Storage Temperature: -4070C (-40158F)
  Operating Humidity: 1090% RH non-condensing
  Storage Humidity: 590% RH non-condensing
• Package Contents: TL-SG2016P
  Power Adapter
  Installation Guide
  Rubber Feet
• Package Type: Retail
• Package Weight: 2.3000 kg
• Warranty: Limited Lifetime
• #Hide#POE: Yes
