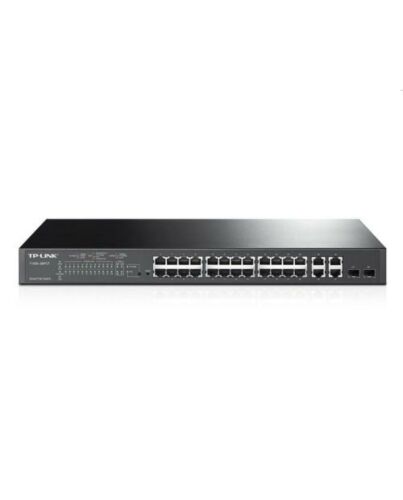

TP-LINK (T1500-28PCT) 24-Port Smart PoE Switch, 24 x 10/100Mbps PoE+ 4-Port Gigabit, 2 Combo GB SFP Slots, Rackmountable

Specification

• Rackmountable: Yes
• Managed: Smart
• Number of Ports: 28
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• #Hide#Max SFP Transfer Rate: GB SFP
• Interface(s): 24 x 10/100Mbps RJ45 Ports
  (Auto Negotiation/Auto MDI/MDIX)
  4 x 10/100/1000Mbps RJ45 Ports
  (Auto Negotiation/Auto MDI/MDIX)
  2 x Combo Gigabit SFP Slots
• PoE Ports (RJ45): Standard: 802.3at/af compliant
  PoE+ Ports: 24 Ports
  Power Supply: 250W
• Standards and Protocols: "IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q,
  IEEE 802.1p"
• Switching Capacity: 12.8 Gbps
• Power Supply: "100~240VAC, 50/60Hz"
• Dimensions: (W x D x H) 440 x 180 x 44 mm
• Mac Address Table: 8k
• Packet Forwarding Rate: 9.5Mpps
• Jumbo Frame: 9216 Bytes
• Quality of Service: 802.1p CoS/DSCP priority
  8 priority queues
  Priority Schedule Mode
  Bandwidth Control
  Smoother Performance
  Storm Control
• Layer Features: "Link Aggregation
  Spanning Tree Protocol
  Loopback Detection
  Flow Control
  Mirroring
  Device Link Detect Protocol (DLDP)

  L2 Multicast
  512 IPv4, IPv6 shared multicast groups
  IGMP Snooping
  MLD Snooping
  Multicast VLAN Registration
  Multicast Filtering"
• VLAN: VLAN Group
  802.1Q tag VLAN
  MAC VLAN
  Protocol VLAN
  GVRP
  Voice VLAN
• Access Control: P/Port/MAC
• Security: AAA
  802.1X
  EAP-TLS/EAP-TTLS/EAP-PEAP
  IP/IPv6-MAC Binding
  IP Source Guard
  IPv6 Source Guard
  DoS Defend
  Static/Dynamic/Permanent Port Security
  Broadcast/Multicast/Unicast Storm Control
  Port Isolation
  Secure web management (HTTPS with SSLv3/TLS1.0)
  Secure CLI management with SSHv1/SSHv2
  IP/Port/MAC based access control
• Management: "Web-based GUI
  CLI through telnet
  SNMPv1/v2c/v3
  SNMP Trap/Inform
  RMON (1,2,3,9 groups)
  SDM Template
  DHCP/BOOTP Client
  CPU Monitoring
  Cable Diagnostics
  EEE
  System Log
  802.1ab LLDP/ LLDP-MED"
• Package Contents: T1500-28PCT
  Power Cord
  Installation Guide
  Resource CD
  Rackmount Kit
  Rubber Feet
• Package Type: Retail
• Package Weight: 3.1000 kg
• Warranty: Limited lifetime
• #Hide#POE: Yes
