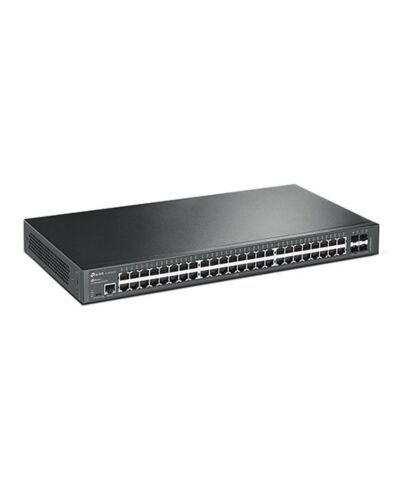

TP-LINK (TL-SG3452X) JetStream 48-Port Gigabit L2+ Managed Switch with 10GE 4 SFP+ Slots, L2/L3/L4 QoS, Fanless, Rackmountable

Specification

• Rackmountable: Yes
• Managed: Yes
• Number of Ports: 48
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• #Hide#Max SFP Transfer Rate: 10G SFP
• Interface(s): 48 x 10/100/1000 Mbps RJ45 Ports
  4 x 10G SFP+ Slots
  1 x RJ45 Console Port
  1 x Micro-USB Console Port
• Switching Capacity: 176 Gbps
• Power Supply: Power Supply
  100-240 V AC~50/60 Hz

  Max Power Consumption
  32.72 W (110V/60Hz)
• Dimensions: (WxDxH) 440 x 220 x 44 mm
• Mac Address Table: 16 K
• Packet Forwarding Rate: 130.9 Mpps
• Jumbo Frame: 9 KB
• Advanced Functions: Supports Omada Hardware/Software/Cloud-Based Controller
  Automatic Device Discovery
  Batch Configuration
  Batch Firmware Upgrading
  Intelligent Network Monitoring
  Abnormal Event Warnings
  Unified Configuration
  Reboot Schedule
  ZTP (Zero-Touch Provisioning)
• Quality of Service: L2/L3/L4 QoS
• Layer Features: "L2 and L2+ Features
  Link Aggregation
  Static link aggregation
  802.3ad LACP
  Up to 8 aggregation groups, containing 8 ports per group
  Spanning Tree Protocol
  802.1d STP
  802.1w RSTP
  802.1s MSTP
  STP Security: TC Protect, BPDU Filter, Root Protect
  Loopback Detection
  Port based
  VLAN based
  Flow Control
  802.3x Flow Control
  HOL Blocking Prevention
  Mirroring
  Port Mirroring
  CPU Mirroring
  One-to-One
  Many-to-One
  Tx/Rx/Both"
• VLAN: "VLAN Group
  Max 4K VLAN Groups
  802.1Q Tagged VLAN
  MAC VLAN: 30 Entries
  Protocol VLAN: Protocol Template 16, Protocol VLAN 16
  Private VLAN
  GVRP
  VLAN VPN (QinQ)
  Port-Based QinQ
  Selective QinQ
  Voice VLAN"
• Access Control: Time-based ACL
  MAC ACL
  Source MAC
  Destination MAC
  VLAN ID
  User Priority
  Ether Type
  IP ACL
  Source IP
  Destination IP
  Fragment
  IP Protocol
  TCP Flag
  TCP/UDP Port
  DSCP/IP TOS
  User Priority
  Combined ACL
  Packet Content ACL
  IPv6 ACL
  Policy
  Mirroring
  Redirect
  Rate Limit
  QoS Remark
  ACL apply to Port/VLAN
• Security: IP-MAC-Port Binding
  IPv6-MAC-Port Binding
  DoS Defend
  Static/Dynamic Port Security
  Broadcast/Multicast/Unicast Storm Control
  802.1X
  AAA (including TACACS+)
  Port Isolation
  Secure web management through HTTPS with SSLv3/TLS 1.2
  Secure Command Line Interface (CLI) management with SSHv1/SSHv2
  IP/Port/MAC based access control
• Management: "Web-based GUI
  Command Line Interface (CLI) through the console port, telnet
  SNMP v1/v2c/v3
  SDM Template
  DHCP/BOOTP Client
  802.1ab LLDP/LLDP-MED
  DHCP AutoInstall
  Dual Image, Dual Configuration
  CPU Monitoring
  Cable Diagnostics
  EEE
  Password Recovery
  SNTP
  System Log"
• Environment: "Operating Temperature: 045C (32113F);
  Storage Temperature: -4070C (-40158F)
  Operating Humidity: 1090% RH non-condensing
  Storage Humidity: 590% RH non-condensing"
• Package Contents: TL-SG3452X Switch
  Power Cord
  Quick Installation Guide
  Rackmount Kit
  Rubber Feet
• Package Type: Retail
• Package Weight: 3.9500 kg
• Warranty: Limited Lifetime
• #Hide#POE: No
