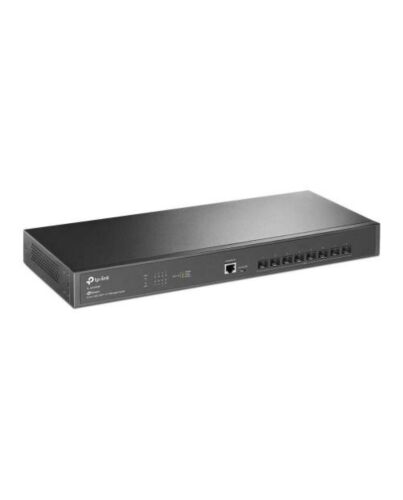

TP-LINK (TL-SX3008F) JetStream 8-Port 10GE SFP+ L2+ Managed Switch, Centralized Management, Fanless, Rackmountable

Specification

• Rackmountable: Yes
• Managed: Yes
• Number of Ports: 8
• #Hide#Max SFP Transfer Rate: 10G SFP
• Interface(s): 8 x 10GE SFP+ Slots
  1 x RJ45 Console Port
  1 x Micro-USB Console Port
• PoE Ports (RJ45): -
• Switching Capacity: 160 Gbps
• Power Supply: 100-240 V AC~50/60 Hz
  Max Power Consumption: 15.46 W (220 V / 50 Hz)
• Dimensions: (W x D x H) 440 x 180 x 44 mm
• Mac Address Table: 32 K
• Packet Forwarding Rate: 119.04 Mpps
• Jumbo Frame: 9 KB
• Advanced Functions: "Support Omada Hardware, Software & Cloud-Based Controller
  Automatic Device Discovery
  Batch Configuration
  Batch Firmware Upgrading
  Intelligent Network Monitoring
  Abnormal Event Warnings
  Unified Configuration
  Reboot Schedule
  ZTP (Zero-Touch Provisioning)"
• Quality of Service: Advanced Quality of Service
• Layer Features: L2 and L2+ Features
  Link Aggregation
  Spanning Tree Protocol
  Loopback Detection
  Flow Control
  Mirroring

  L2 Multicast
  IGMP Snooping
  IGMP Authentication
  MLD Snooping
  MVR
  Multicast Filtering: 256 profiles & 16 entries per profile

  LL3 Features
  16 IPv4/IPv6 Interfaces
  Static Routing
  Static ARP
  Proxy ARP
  Gratuitous ARP
  DHCP Server
  DHCP Relay
  DHCP L2 Relay
• VLAN: "VLAN Group
  802.1Q Tagged VLAN
  MAC VLAN: 7 Entries
  Protocol VLAN: Protocol Template 16, Protocol VLAN 16
  Private VLAN
  GVRP
  VLAN VPN (QinQ)
  Voice VLAN"
• Access Control: Time-based ACL
  MAC ACL
  IP ACL
  Combined ACL
  Packet Content ACL
  IPv6 ACL
  Policy
  ACL apply to Port/VLAN
• Security: IP-MAC-Port Binding
  IPv6-MAC-Port Binding
  DoS Defend
  Static/Dynamic Port Security
  Broadcast/Multicast/Unicast Storm Control
  802.1X
  AAA (including TACACS+)
  Port Isolation
  Secure web management - HTTPS with SSLv3/TLS 1.2
  Secure CLI management with SSHv1/SSHv2
  IP/Port/MAC based access control
• Management: "Web-based GUI
  CLI through the console port, telnet
  SNMP v1/v2c/v3
  SDM Template
  DHCP/BOOTP Client
  802.1ab LLDP/LLDP-MED
  DHCP AutoInstall
  Dual Image, Dual Configuration
  CPU Monitoring
  Cable Diagnostics
  EEE
  Password Recovery
  SNTP
  System Log"
• Environment: Operating Temperature: 045 C (32113 F)
  Storage Temperature: -4070 C (-40158 F)
  Operating Humidity: 1090% RH non-condensing
  Storage Humidity: 590% RH non-condensing
• Package Contents: Switch
  Power Cord
  Quick Installation Guide
  Rackmount Kit
  Rubber Feet
• Package Type: Retail
• Package Weight: 2.4000 kg
• Warranty: Limited Lifetime
• #Hide#POE: No
