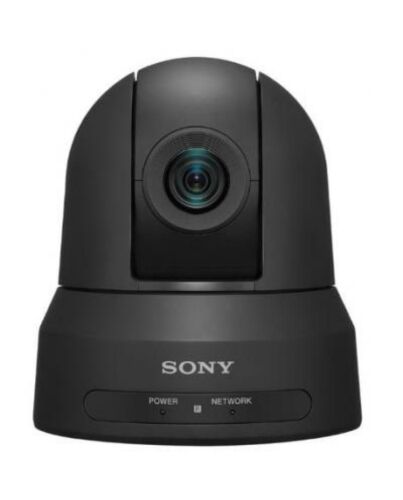

Sony SRG-X400WC

Option to ugrade to 4K

Capture every point of view with excellent 4K picture quality and efficient IP production workflow

The versatile SRG-X400 remotely controlled PTZ camera is ideal for a wide range of applications - from classrooms and meeting spaces to houses of worship lecture halls and medical environments.

The camera's 1/2.5-type Exmor R CMOS sensor captures up to 4K resolution images (requires optional license) with excellent sensitivity very low noise and rich natural colour reproduction. It's complemented by the integrated high-resolution lens that offers zoom capability up to 40x in Full HD*** (30x in 4K) with an expansive approx. 70 degree wide angle coverage to capture every point of view.

High speed movement during preset recall captures the speaker's every movement while Picture Freeze during transitions ensures your audience isn't disturbed by rapid camera movements. PTZ Motion Sync** function allows smooth blending of separate pan tilt and zoom movements for seamless professional-looking transition.

Efficient IP-based live production is augmented with support for NDIHX (via optional license) allowing flexible configuration with other networked NDI-enabled devices.

Images also can be reviewing remotely via a web browser with support for RTSP (Real Time Streaming Protocol) and RTMP** (Real Time Messaging Protocol) ensuring smooth stable streaming of video plus audio (from an optional microphone available separately) over an IPnetwork.

* NDI is a registered trademark of NewTek Inc.
** Available through future upgrade planned in early 2020.
*** With Clear Image Zoom.

Note 1: This product contains pre-installed software and requires the purchase of licence keys to activate some functions.

Note 2: When using RM-IP500 firmware should be updated to V2.10 and for RM-IP10 firmware should be updated to V2.17.

Features

Excellent images even in low light

The sensitive 1/2.5-type Exmor R sensor captures high-quality images with very low noise even in dimly-lit environments.

4K upgrade option

Upgrade to 4K shooting via optional license (availability planned in early 2020).

Up to 40x zoom

Powerful zoom up to 40x (in Full HD) allows finely detailed frame-filling close-ups. Responsive autofocus ensures that images stay clear and sharp even at high zoom settings.

Wide viewing angle

Cover the whole scene in meetings and lecture theatres with a horizontal viewing angle of approx. 70 degrees.

High speed movement and Picture Freeze Preset

Accurately capture the presenter's movements with maximum 300/sec pan and tilt movement during preset recall. Picture Freeze Preset maintains a steady image while the camera moves to a new preset position – with no uncomfortable transitions for your audience.

Ideal for lecture caputure

Use the camera in conjunction with the AI-based REA-C1000 Edge Analytics Appliance to smoothly track the speaker's movements and automatically generate a cut-out image of speaker.

Simpler installation lower costs

A single network cable carries camera power video output and control signals to simplify installation and reduce cabling costs.

Smooth pan-tilt-zoom

PTZ Motion Sync function allows smooth blending of separate pan tilt and zoom movements for seamless professional-looking transitions.

Remote viewing

View pictures remotely over the Internet from a web browser with support for RTSP (Real Time Streaming Protocol) and RTMP* (Real Time Messaging Protocol).
* RTMP support available via future upgrade planned in early 2020.

Support for NDI*HX

NDIHX compatibility (via optional license) enables cost-effictive school studio system integration allowing flexible configuration with other networked NDI-enabled devices.

* NDI is a registered trademark of NewTek Inc. Network services content and the [operating system and] software of this Product may be subject to individual terms and conditions and changed interrupted or discontinued at any time and may require fees registration and credit card information.
